Mirage - Model M-125 -Turf Sprinklers
The M-125 offers a long throw in a small mechanical footprint makes it ideal for smaller synthetic sports field applications, or in out-of-play areas of natural turf fields. Available in full and part circle models as well as block style and electric valve-in-head models, the M-125 offers a wide range of flow rates and radius ranges.
- Long radius, up to 125 ft.
- Selectable radius and flow range
- Full or part circle (part circle 30°-360°)
- Block style or electric valve-in-head models
Typical Applications

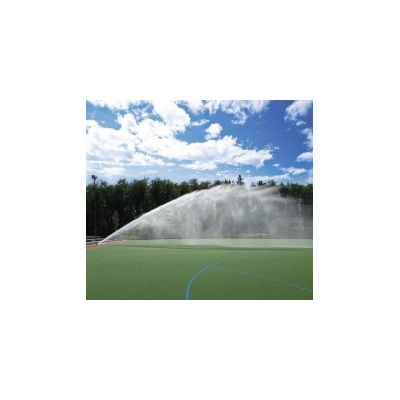

Synthetic and natural turf sports fields, equestrian horse rings and racetracks
4" Pop-up
Made to clear deep synthetic turf pile typical of sports field applications
Variable flow and Radius Range
11 nozzles sizes to select from 25-125 GPM and from 62-125 ft. radius
Stainless Valve Boxes
Developed for synthetic turf applications for faster installation and access without having to disturb the surrounding field or sub-base
Underhill Total Solution Kits
Underhill offers a wide range of PVC, ductile iron swing joints and/or swing joint kits. The Total Solution kits also include a corresponding stainless steel sprinkler box specific to this series sprinkler
- Sprinkler Type Block style, or Electric Valve-in-Head – 24 VAC actuated solenoid
- Arc Pattern Full circle, Part Circle 30-360°
- Radius Range 62-125 ft. (19,0-38,0 m)
- Flow 25-125 Gpm (5,6-28,6 m3/hr)
- Recommended Operating Pressure 45-120 PSI (3-8 bars)
- Maximum Operating Pressure 145 PSI (10 bars)
- Minimum Operating Pressure 45 PSI (3 bars)
- Nozzle Sizes 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 & 17.5 mm
- Trajectory 22°
- Inlet 1-1/2" BSP (bottom inlet)
- Height 17.7" (450 mm)
- Pop-up Height 4" (99 mm)
- Lid Cover 7" diameter (180 mm)
