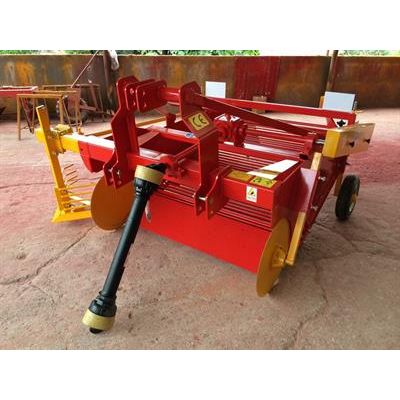

Demsan - Model SS2 - Two Row Onion Harvester with Complete Pallet System
Absolutely,innovative,efficient,reliable,powerful. Strong HeavyDuty Chassis. Best Results and Best Harvest Quality. Simple operation of settings and for maintanance designed for easy harvest even in diffucult conditions. 1400 mm operational width.(More Sieving System from Demsan).
Most popular related searches
harvesting system
onion harvesting
soil conditioning
2-row harvesting
tractor wheel
onion harvesting system
tractor
onion
furrow
harvesting operation
- Excellent soil seperation by it’s special long pallet system.
- Steel Cast Pallet Gears and Trunnion with bearings are durable and LongLasting against wear.
- Pallet Bushes,links and front blade are heat treated steel.
- Pallet is supported by agitator rollers with bearings.
- Optional Hydraulic Moving Side Box Profile Furrow Opener to follow of Tractor`s Wheel.
- Works at all soil conditions moreover humadity field in winter season
- Power take of (P.T.O),(540 r.p.m)
- 0,5 hectare/hour harvesting capacity (@2 km/h).
- ATTACHMENT TYPESemi-Hang (Categorie 1 and 2)
- POWERED BYP.T.O. ( 540 rpm)
- NO. Of PROCESSING ROWS 2
- DISTANCE BETWEEN ROWS 700 - 750 mm
- OPERATIONAL WIDTH 1.400 mm
- OPERATIONAL DEPTH 200 – 250 mm
- NO. Of BLADES 9 Pieces Fragmental Blade (Optional Complete or Knurled Blade)
- SUB-MERGING ANGLE 23o
- SIEVING AREA1,60 m2
- INCLINE ANGLE of SIEVE 12o
- DISTANCE BETWEEN PALLET BARS 47 mm (Center to center)
- DIAMETER of PALLET BARS 14 mm
- OPERATIONAL CAPACITY 0,5 ha/h ( 5 da/h ) (@ 2 km/h)
- WIDTH 2100 mm
- LENGTH2750 mm
- HEIGTH1200 mm
- GEARBOX OIL CAPACITY( 0,11 Gallon )
- WEIGHT 760 kg
