BCS - Model 740 Action -Two-Wheel Tractor
Reversible and multifunctional two-wheel tractor | power up to 11.7 hp | tilling width up to 80 cm. The versatility of BCS two-wheel tractors Action series allows to fulfil all requirements pertaining to soil working, gardens` care, greens maintenance, inter-row mowing in vineyards and orchards or in uncultivated areas and during winter use, all year round. Thanks to their handling and ease of use, the BCS two-wheel tractors Action series are well performing any type of use and can be used by a vast range of users: from hobby to professional farmers, and from individuals to the greenery caretaker.

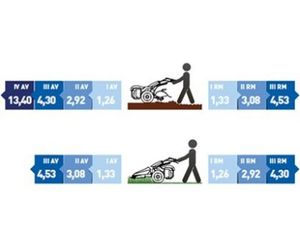

- No. of speeds (FWD+REV): 4 + 3 in two-wheel tractor position, 3 + 3 in motor mower position
- Quick reverser to change the forwarding direction
- Differential: with lock
- Dry clutch: with manual control
- Independent power take-off: with engagement in oil bath
- Independent working brakes: on the two wheels
- Handlebar: mounted on silent-blocks, adjustable in height and sideways and reversible
- Safety devices: Engine Stop combined with clutch and contrast reverse speed to avoid contemporary action of reverse speed and rotary hoe

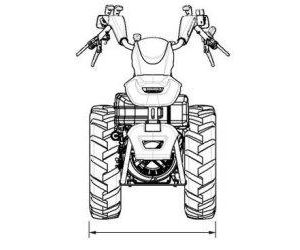

Width min / max (without attachment):
- with wheels 5.0-10: 503 / 575 mm
- with wheels 6.5/80-12: 668 / 790 mm
- with steel cage wheels Ø cm 49: 450 mm
Weight (without attachment):

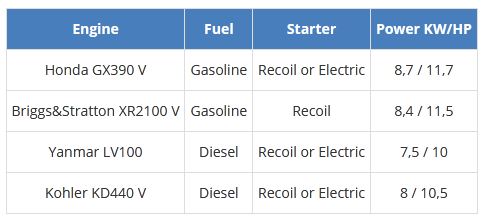

- with GX390 engine, wheels 5.0-10: 104 kg
- with GX390 AE engine, wheels 5.0-10: 104 kg
- with XR2100 engine, wheels 5.0-10: 108 kg
- with LN100 engine, wheels 5.0-10: 122 kg
- with LN100 AE engine, wheels 5.0-10: 130 kg
- with KD440 engine, wheels 5.0-10: 120 kg
- with KD440 AE engine, wheels 5.0-10: 126 kg
- Two-wheel tractor version (with rear attachments)
- Motor mower version (with front attachments)
The conical self-ventilating dry clutch allows simple maintenance and low operating costs.
Safety
- Motor Stop combined with the clutch.
- Device to prevent the simultaneous engagement of rotary hoe and reverse speed.
Manoeuvrability
- Solid and compact structure to make the two-wheel tractors extremely light and maneuverable on all types of grounds.
- Optimal balancing of the machine with both front and rear attachments.
Comfort
- Adjustable handlebar in 7 different positions - to fit all types of operator - and sideways to avoid treading the soil worked or to cut on slope.
- Handlebar mounted on silent-blocks to dampen vibrations and allow the use of the two-wheel tractors for several hours without straining the operator.
Ergonomics
- Easy to locate and operate levers and controls with simple and effortless movements.
- Intuitive and well-visible pictograms illustrate the function of all controls to the operator.
Experience
- BCS is a leading Company in the sector of agricultural and greens maintenance machines. Born in 1943, it is recognized internationally for the high quality of its production.
