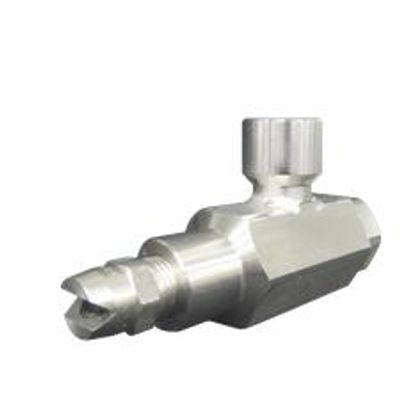

Ikeuchi - Model BAVV series - Ultra-Low Pressure Fine Fog Flat Spray Nozzles
The BAVV series nozzles’ features: Flat spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 40 μm or more (*3). Energy-saving for blower-use. Low running cost. Clog-resistant design due to large free passage diameter.
Most popular related searches
- Spray angle measured at both air and liquid pressure of 0.02 MPa (ca. 0.2 bar).
- Free passage diameter of nozzle orifice.
- Measured by Laser Doppler Method.
Thread standard: -
- Pipe conn, size: Liquid inlet: R1/4", Air inlet: Re 3/8"
- Standard pressure: -
- Spray angle: 60° (*1)
- Spray capacity: 9.0-123 L/hr
- Supply air type: Blower air
- Liquid feeding system: Liquid pressure
- Mean droplet diameter: 40-100pm(*3)
- Air consumption: 76 - 254 L/min, Normal
- Air pressure: 0.02 MPa (ca. 0.2 bar)
- Free passage diameter: 2.5-4.7 mm (*2)
The BAVV series nozzles have multiple applications:
- Cleaning: Liquid crystal, glass substrate, printed circuit boards
- Cooling: Steel plates
- Dust suppression: Raw material conveyor line
- Moisture control: Paper making
