William Hackett Chains Ltd

Universal Mounted Frames Attachment

0

All mounted frames are supplied in flatpack form for self assembly and ease of  transportation. Frames 6’-0” to 8’-0” wide are of bolt together construction and  those 10’-0” wide and over consist of a fabricated all welded centre frame and folding wing sections. Comprehensive assembly instructions are supplied with  all mounted harrows.

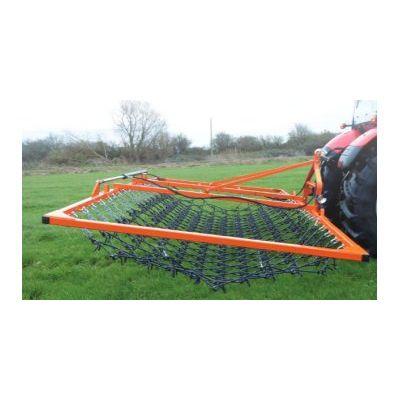

All universal frames are constructed from 60mm x 60mm R.H.S. for additional strength and rigidity All frame wings have gusset plates welded to the corners (Pic. A)  to add strength and rigidity to the frame. Chain  links are welded along the front and rear bars  (Pic. B) to  accommodate our complete range of harrow sections. Mounted harrows are available in widths of 6’-0” through to 20’-0” wide with a depth of 7’-6”, frames of 10’-0” and over have folding wings for ease of transportation along roads and through gateways. Folding is a simple manual operation, alternatively a  hydraulic folding kit (Pic. C) is available as an option on all frames. Mounting brackets are fitted as standard, to frames from 12ft and over to make retro fitting of the folding kit easier.
