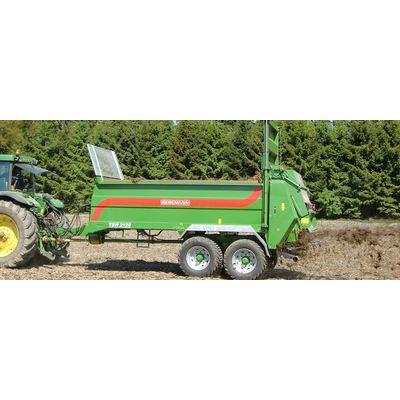

Bergmann - Model TSW 2120 T -Universal Spreader

Technical Data - Tandem: Gross weight: 8,000 - 12,000 kg. Dead weight: 5.080 kg. Load capacity: 2.920 - 6.920 kg.

Bridge dimensions
Length: 4,900 mm
Width: 1,800 mm
Height: 1,070 mm
Vehicle dimensions
Length: 7,640 mm
Width: 2,320 mm
Height: 3,150 mm*
Loading height/series: 2,430 mm**
Load volume - series: 9,10 m³
Scraper floor drive: hydr.
Power demand:

KW: 74 - 118
h.p.: 100 - 160

*with dosing wall
**with tire 620/40 R 22.5 Vredestein
Measures, weights and technical data subject to change without notice. All illustrations, dimensions and weights do not necessarily correspond to the series model and are non-binding.
