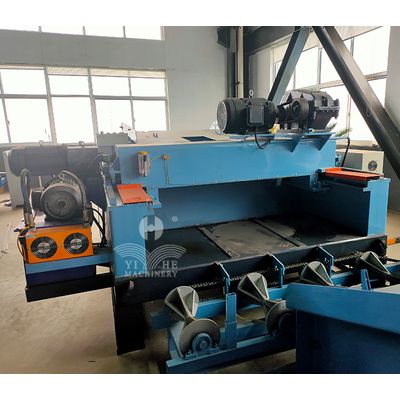

Yihe Machinery - Model 4FT Heavy Duty - Updated Debarking Machine
The 4FT Heavy Duty Updated Debarking Machine is an advanced version of the standard 4ft debarking machine. Designed with an enhanced and more stable steel-welded structure, it boasts significant durability and operational stability. Key features include a hydraulic station equipped with an oil cooler to prevent cylinder seal damage, ensuring the machine can operate continuously for 24 hours without interruption. The machine handles wood diameters ranging from 80mm to 550mm and wood lengths between 900mm and 1300mm. It is outfitted with double and single rollers, each 150mm in diameter, with motor powers of 11kw and 7.5kw respectively. The hydraulic station has a 5.5kw motor, contributing to a total machine power of 24kw. The overall dimensions are 4500mm in length, 1900mm in width, and 1450mm in height, with a total weight of 4200kg. The machine achieves a linear speed of 52 meters per minute and accommodates blade lengths of 1400mm for veneer peeling thicknesses between 1mm and 3mm.Most popular related searches
debarker machine
wood debarker machine
debark
debarking
debarker
log debarking
debarker design
wood handling
This wood debarking machine is updated based on the 4ft normal model debarking machine, the whole machine structure is welded by the steel and the structure design is more stable and reasonable.
- This wood debarking machine is updated based on the 4ft normal model debarking machine, the whole machine structure is welded by the steel and the structure design is more stable and reasonable;
- Hydraulic station is equipped with oil cooler, avoid the sealing of cylinder damage, and this high quality hydraulic station can ensure this debarking machine 24 hours' working without any stop.
Model number: YDB/4H
Wood diameter: Φ80-Φ550mm
Wood length: 900-1300mm
Blade length: 1400mm
Thickness of veneer peeler: 1-3mm
Linear speed of host machine: 52m /min
Double roller diameter: Φ150mm
Single roller diameter: Φ150mm
Double roller motor power: 11kw
Single roller motor power: 7.5kw
Hydraulic station motor power: 5.5kw
Total power: 24kw
Overall size: 4500*1900*1450mm
Machine's weight: 4200kg
