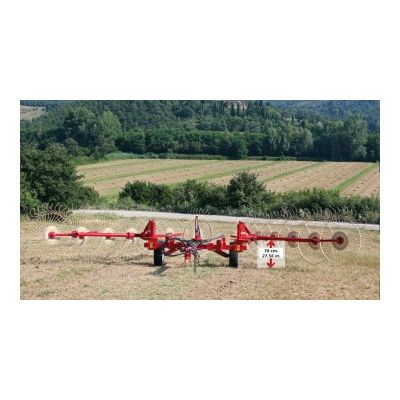

Enorossi - Model CADDY -V Frame with Central Joint Rake
Enorossi has a wide range of wheel rakes, ideal for any farmer’s need. The rake wheels, with different systems, adapt individually and perfectly to the ground, guaranteeing excellent work especially in difficult field conditions. The versatility of the wheel rakes make them suitable for harvesting grass, straw, corn stalks, sorghum and sugar cane.

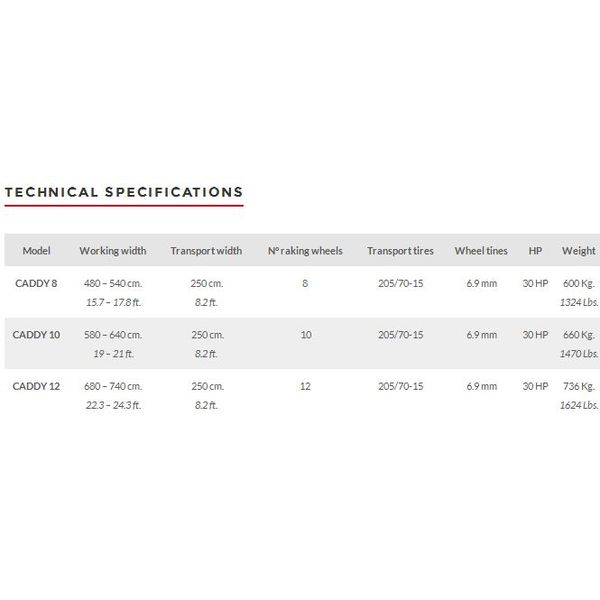

A = Working width from 17,8 to 24,5 ft.
STABILITY DURING TRANSPORT
The safety mechanical locking and the wide radius of the wheels ensure maximum stability during transport.
ADJUSTMENT OF THE RAKING WHEELS PRESSURE ON THE GROUND
The mechanical device allows to simultaneously adjusting all the raking wheels pressure on the ground. This simplifies the proper operation during windrow preparation even on uneven grounds.
SHIFTING WHEELS
The shifting wheels allow adjusting the wheelbase in order to adapt the rake to the different working conditions. They can also help the user during daily work, especially on uneven grounds.
HYDRAULIC DEVICE FOR MOVING FROM WORKING TO TRANSPORT POSITION
Hydraulic device for moving from transport to working position in a few seconds directly from the tractor’s seat by means of two hydraulic cylinders provided as standard with the rake.
WHEEL HUB LUBRICATION
Grease lubricated wheel hubs with tapered roller bearings to improve endurance and durability.
ARM WITH DOUBLE WHEEL
The arm with special shape allows an optimal passage of the crop, facilitating the windrow formation even at sustained tractor speed.
GROUND ADAPTATION OF THE WHEELS
The central frame and wheels hinge facilitate the ground adaptation for optimal forage harvesting and windrow formation.
