Valka - Whitefish Fillet Portioning

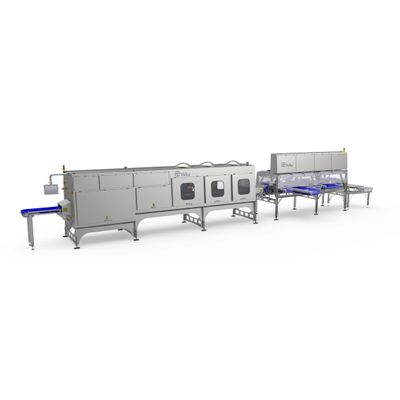

The Valka Cutter automatically removes pin bones and cuts to the desired portions. The machine uses combination of an X-Ray and 3D image processing system together with robot controlled water jets to locate and cut pin bone and portions with great accuracy. The system analyzes each fillet and cuts highly uniform portions in relation to size, weight and thickness according to your specification. Multiple cutting patterns or programs can be defined and different size of fillets can be cut into different patterns.
Most popular related searches
Belt speed up to 480mm/sec makes it the most efficient fish portioning machine available.
Choose the robot types that suit best for your portion types and for maximum accuracy & results.
-
X-Ray camera detecs bones down to 0.2mm in size
-
Automatically cuts out pin bone and to the desired portions
-
Precise cutting and uniform portions
-
Greatly improves product handling as all cuts are made in a single machine
-
Reduces the amount of labor needed for trimming
-
Increases yield by minimizing the bone off cut, typically the V-cut and belly bone
-
Increases the yield into higher value products, commonly by maximizing the size of the loins
-
Ensures bone free products
DUAL STREAM
The dual-stream version of Valka Cutter is designed for cutting two parallel streams of fillets on a single conveyor belt. Hence, the capacity is double compared to the traditional cutter. This version has a new image processing system that allows for two parallel streams and is best suited for small fish fillets.
FEATURES & BENEFITS
- Dual stream of fillets
- Double the capacity
- Up to 200mm long fillets
- Up to 180 fillets per minute
DUAL LANE
The dual-lane version of Valka Cutter is equipped with two cutting systems inside a single body. Essentially the setup is two machines in the same frame that has a substantially smaller footprint than two separate machines. Each cutter lane is operated individually and regardless of each other.
FEATURES & BENEFITS
- Double the capacity
- Considarbly smaller footprint
- Operated as two machines
