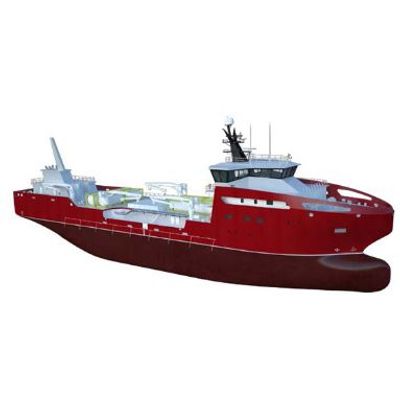

Vard - Model 8 50 - Live Fish Transportation Vessel
From Vessels
The vessel is designed for transportation of live fish. It has the following features: Two longitudinal cargo tanks for transportation of live fish. Each tank outfitted for both closed and open circulation of sea water. Cargo tanks designed for under- and overpressure operations. Moving bulkhead system in each cargo tank. The vessel is outfitted with various water treatment systems to manipulate the water chemistry. Two RSW plants installed on main deck. Fish handling systems installed on the main deck.
Features
The system consists of hoses, fish pipes, vacuum pump, graders and valves.
- A water separator system for loading of fish.
- Washing system to provide automatic washing of fish holds and pipes.
- A control system for all fish handling and circulation equipment.
- Crane capacities for handling of fish hoses and nets.
Option
- Reverse osmosis system for onboard production of fresh water for live fish treatment purposes.
Designs in terms of size and capacities are available upon request. Engine and propulsion configuration, general outfitting and options are adapted to each design in accordance with the customer’s needs.
Technical Data
- Length overall: 61,1 m
- Length between: p.p 57,1 m
- Breadth moulded: 14,0 m
- Depth main deck: 6,2 m
- Max draught: 5,3 m
- Circulation system fish tanks: approx. 400 m3
- Fresh water for cargo system: 400 m3
