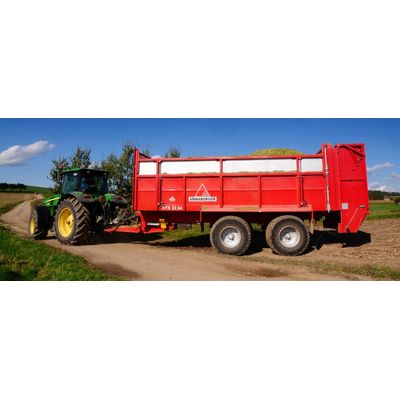

Annaburger TeleLine - Vehicle Combination for Transporting Silage
ANNABURGER TeleLiner – the state-of-the-art vehicle combination for transporting silage goods and spreading manure, compost and lime. The ANNABURGER TeleLiner is a state-of-the-art vehicle combination that can be used as both a universal muck spreader and a silage trailer. The 3-roller universal spreading unit is replaced by a high-volume rear door quickly and easily using lifting gear. Thanks to the aluminium side walls, which can be infinitely adjusted by means of hydraulics, the transport capacity can be optimally adapted to the prevailing operating conditions while taking into account the permissible total weight.
Universal – designed for high annual utilisation
1. As a powerful and reliable manure, compost and lime spreader.
- The TeleLiner is ideally suited to spreading material of varying consistency.
- It works with a broad spreading width of up to 24.0 m and distributes the material evenly.
- Accurate dosing is guaranteed by the hydraulic intermediate wall.
2. As a powerful and cost-effective silage trailer.
- The mechanical scraper floor drive discharges its load in under a minute.
- The distributing device guarantees consistent crop discharge on the silo.
- The machine can be set up extremely quickly using lifting gear.
- Conversion from a universal muck spreader to a silage trailer
- From universal muck spreader to silage trailer in 30 minutes with lifting gear
- Simple adapter changeover on spreading unit and rear chaff cutting wall
- After removing the adapter, the hydraulic line is connected and the new adapter is securely attached to the vehicle via the mechanical quick-release coupling.
HTS 20.07
- Permissible total weight: 20.0 t/21.0 t
- Spreader volume: 18 m³
- Silage trailer volume: 30 m³
- Box dimensions: 6.3 x 2.3 x 1.2 / 2.0
- PTO shaft speed: 1000 rpm
- Tractor power: 180 HP
- Chassis: Tandem chassis
HTS 22.07
- Permissible total weight: 22.0 t/23.0 t
- Spreader volume: 19 m³
- Silage trailer volume: 32 m³
- Box dimensions: 6.8 x 2.3 x 1.2 / 2.0
- PTO shaft speed: 1000 rpm
- Tractor power: 200 HP
- Chassis: Tandem chassis
HTS 29.07
- Permissible total weight: 29.0 t/30.0 t
- Spreader volume: 21 m³
- Silage trailer volume: 43 m³
- Box dimensions: 7.5 x 2.3 x 1.2 / 2.0
- PTO shaft speed: 1000 rpm
- Tractor power: 280 HP
- Chassis: Tridem chassis
HTS 33.07
- Permissible total weight: 33.0 t
- Spreader volume: 21 m³
- Silage trailer volume: 43 m³
- Box dimensions: 7.5 x 2.3 x 1.2 / 2.0
- PTO shaft speed: 1000 rpm
- Tractor power: 300 HP
- Chassis: Tridem chassis
