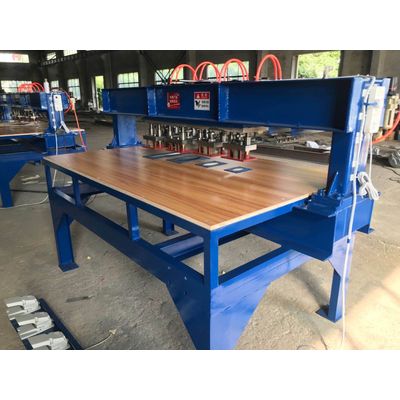

Yihe Machinery - Model Semi-Automatic -Veneer Patching Machine
The semi-automatic veneer patching machine is widely used in plywood and laminate flooring board production to repair natural defects and cracks in veneers. This machine operates using a punch mechanism to create shaped holes in veneers, followed by manual filling of shaped veneer patches into these holes. The seams are then adhered using veneer paper tapes or hot-melt adhesive. This method offers cost savings by making better use of lower quality veneers and reducing waste. The machine is suitable for repairing veneers of various thicknesses and sizes, including face and core veneers. Customization options are available based on veneer size, mold size, and mold combination, with the machine commonly tailored to specific factory needs. Its technical parameters include a mending veneer size of ≤2600*1270 mm, veneer thickness of 0.5-6mm, air pressure requirements of 0.6-0.95MPa, and operating dimensions of 3600*3355*1600mm. The machine is noted for its smooth burr-free patch edges, high efficiency, full pneumatic operation, and customizable mold combinations.Technical Parameter of veneer patching machine (semi-automatic type)
Mending veneer size：≤2600*1270 mm for veneer peeled by 8ft/9ft rotary peeling machine,
Mending veneer thickness：0.5-6mm
Air pressure：0.6-0.95MPa
Entrance size of air：Φ12mm pipe
Patches mold size：100*60mm, 150*90mm, 250*120mm，350*50mm
Voltage：220V-50Hz
Line marking light power：3.5W*5
Valve：3W*4
Working table size：3000 *3355mm
Dimension：3600 *3355*1600mm
This technical parameter is for reference only, depend on veneer size, mold size and mold combination\
Features of veneer patching machine (semi-automatic type)
-
The edge of the punched patch is smooth and burr-free
-
Full pneumatic, high efficiency, durable, easy maintenance
-
Mold combination supports customization, convenient and flexible
-
There is a slight difference between the die size of the patch and the die size of the punching hole, which is easy to repair the adhesion.
-
Mould, no grinding for two years, no replacement for 10 years
