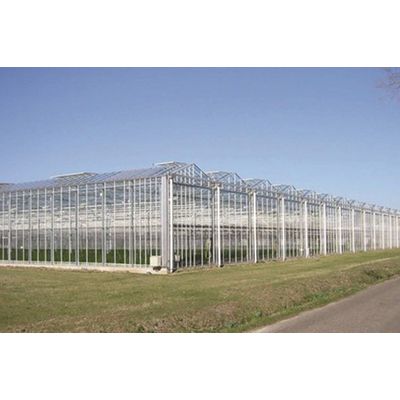

Snrcorp - Venlo Greenhouse

• The structure features dual-slope, small-sized roof elements with minimal shading area by the load-bearing elements and low use of steel to guarantee high transmittance.
• With skylights on both sides of the ridge, the ventilation system could cool the greenhouse. The skylights are opened from opposite directions.
• With a grid structure, it is convenient to create compartments and install draw curtain systems and crop hanging systems.
• Venlo greenhouse could bear more loads and cope with severe weather conditions due to its low height.
• The roofs are mainly identical and elements have versatility so that the maintenance cost is low.

Frame:

• Hot-dip galvanized steel. It enables a fast and convenient installation. Meanwhile, it is also environmentally friendly.

Covering materials:

• On the roof: polycarbonate sheets or glasses
• On the surrounding: polyolefin film
• Solar shading system: solar shading system inside or outside of the greenhouse is available
• Span: 6.4m/8.0m/9m/9.6m/10.8m/12m or customized size
• Width: 4m, 8m or customized size
• Height: 3m-9m or customized size

Frame load:

• Wind load: 0.5kn/m² or customized load Snow load: 0.3kn/m² or customized load
• Plant load: 0.15kn/m² or customized load
• Rain load: 140mm³/h or customized load

Venlo greenhouses can be applied as fruit greenhouses, flower greenhouses, and vegetable greenhouses. We can customize various Venlo greenhouses and relevant systems and equipment including heating systems, ventilation systems, irrigation and fertilization systems, spray systems, movable benches and more.
