Vertical Auger Mixer
From Diet Feeders

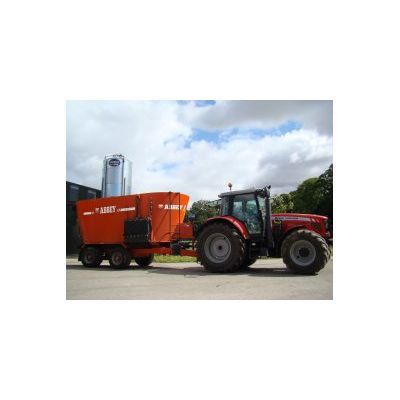

The Abbey Vertical Auger mixer a class leading feeder, providing unique mixing ability with inherent build quality, thus providing customers with unique speed of mix and longevity. The Abbey vertical diet feeder range is available in 3 different options – single auger, twin auger and tri-auger. Models have capacities ranging from 7 cubic metres up to 40.5 cubic metres with a host of feed-out options.
-
Most popular related searches
Product Description
Option 1 is a single auger machine with 7cu³ up to 16cu³.
Option 2 is a twin auger machine 14cu³ up to 28cu³.
Option 3 is a tri auger machine 27cu³ - 33cu³.
The Abbey vertical feeder range comes with a host of key features and is powered by a heavy duty industrial gearbox. This unit powers the uniquely designed mixing auger which carries out the dual function of both chopping and mixing while lifting the feed ingredients up through its gently flighted auger and then drawn down along the side and the cycle begins again. The Abbey vertical mixer range has the ability to handle all animal feed ingredients. Roots can be chopped and mixed with other ingredients in one operation and incorporated alongside big bales of hay, straw and silage. All ingredients can be added to make a completely mixed TMR for livestock.
Standard Equipment
The mixing auger design allows for a much lower horse power requirement than its rivals, due to its gradual flighting. The lower auger design allows for less floor stress when adding whole hay bales, placing much less pressure on the working parts of the machines.
- 20mm floor plate
- 6/8mm wall plate
- 15mm Auger plate
- Programmable weighing options
There are 6-8 strengthened serrated blades on each auger. The top blade on each auger is uniquely angled to rapidly draw feed into the feeder and mix quickly, which reduces mixing time and also helps to maintain feed structure.
With the Abbey vertical feeder range there is a host of feed-out options available, the Abbey vertical feeders come as standard with two doors in the SD model which can be fitted with a discharge conveyor or a hydraulic folding chute, and the RD model which is accustomed to narrower feeding situations. The FD model is a front door cross conveyor (single door) which comes as standard with a chain and slat conveyor fixed but can also come with a PVC conveyor and can be either sliding or sliding and raised for feeding over troughs where there are obstacles the must be adhered to. Abbey have recently added a front sliding raising conveyor option for awkard to feed troughs of bunkers.
Here at Abbey we understand that fast and accurate mixing means reduced fuel usage, maintenance of feed structure and more efficient animal performance. This is why we use one best and most accurate system on the market today. The Digi-Star Programmable 3400 box com.
Features
Why An Abbey TUB Feeder?
Three times the life of conventional feeders
Unrivalled consistency:
- In chopping the ingredients you want (big bales)
- In chopping the cost effective fodder you need (beet)
- In blending the mix you want
- In the herd you produce
- In being able to accurately observe and control your animals diets
- In working the feeder when you want it
- In keeping maintenance costs low as a result of the robust design of the feeder
- In being able to adapt the quantities of various ingredients to provide the animal with a balanced feed
- In blending the mix you want whilst preserving the feed structure
- By providing a more aerated mix to ensure optimum ingestion
Key Points
- Manufactured with high grade carbon steel to increase the life of the feeder
- 15mm heavy duty auger, 20mm floor
- Independent chassis. Increases stability and strength
- 4 point weight system
- Programmable digistar box (EZ3400)
- Large counter knifes for a faster mix
- Larger doors for faster feed out and a more even spread
- Heavy duty industrial SOM/Comer planetary gearbox
- Extended warranty on gearbox
- Extended warranty on weigh system
- Low horse power requirement
- Self sharpening knifes
- Has top class mix consistency proven in independent trials world wide
