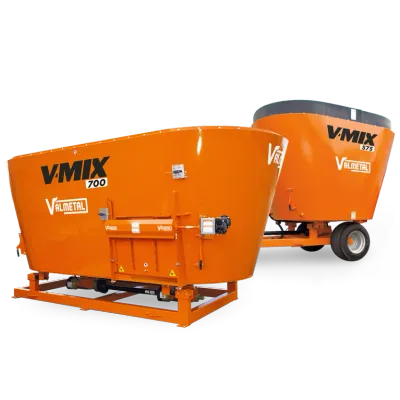

Valmetal - Model V-Mix, V-Max & Fatmix -Vertical Feed Mixers

SHARE
Valmetal's vertical feed mixers are designed for the efficient processing of a wide array of dietary components for livestock, capable of handling nearly any form of ingredient. Offering a range of tub shapes and auger configurations, these mixers are engineered to facilitate rapid bale processing while maintaining the integrity of dietary fiber. Notably, they consume less power and provide precise mixing, characteristic of Valmetal's offerings. The mixer lineup includes the V-Mix, V-Max, and Fatmix series, each tailored with specific tub and auger designs to cater to varied operational needs. Opt for a stationary unit to integrate into an automated feeding system or a mobile trailer model for greater versatility. Essential features include reinforcement discs for stable operation and tungsten carbide knives for efficient processing, ensuring durability and extended lifespan. With various optional enhancements like hydraulic door openers, extra kicker arms, and unloading conveyors, these mixers can meet the demands of complex feeding environments.
Most popular related searches
vertical feed mixer
feed mixing
stationary mixer
TMR mixer
round baling
tractor
livestock handling
livestock
feed auger
TMR feeding
Benefits
  • Heavy duty frame and scale mounts.
  • High precision rolled walls for smoothest finish and easiest mixing.
  • Extra-large auger delivers fast and complete mixing.
  • Ideal choice for large round or square bales.
  • Simple planetary drive system.
  • Low maintenance.
  • Tub floor made of stell 44W - 3/4`` (19 mm)
  • Fully welded tub made of abrasion resistant steel AR-235 - 1/4`` (6 mm)
  • Auger flighting made of steel 44W - 3/4`` (19 mm)
  • Heavy duty planetary gearbox
  • Drive system with 2-speed gearbox
  • Choice of unloading door position (left or right)
  • Electric door opening kit
  • Oil cooling system
  • Retention chain

Strengthen your Valmetal Vertical Mixer with our optional liners:

  • Stainless steel tub inner wall liner 1/8`` (3 mm) X 40`` (102 cm).
  • Stainless steel bottom liner 1/4`` (6 mm).
  • Stainless steel liner of 3/16`` (5 mm) on 4`` (10 cm) auger.
  • Stainless steel liner of the 1/4`` (6 mm) at the bottom screw.

The 400 and 575 are the most popular models of the V-Mix series. The unique shape or their tub features a flat side that greatly speeds bale shredding which offers an appreciable time and energy saving day after day.

The V-Mix 700, V-Max 630 and the Fatmix series are equipped with twin screws, specially designed to deliver maximum performance and efficiency.

The stationary mixers of the V-Mix series are equipped with a two-speed drive system.

Knifes
Each auger is fitted with 4 extra-large tungsten carbide knives (up to 7) for fast bale processing. Knives are Rockwell 52 hardness for long life.

Reinforcement disc
The planetary gearbox mounting area is reinforced to 3/4” (19 mm) thick to distribute loads and provide excellent stability.

Extra kicker arm (option)
The addition of a second, replaceable kicker arm provides more even unloading. Recommended when unloading to conveyors.

Extra kicker arm (option)
The addition of a second, replaceable kicker arm provides more even unloading. Recommended when unloading to conveyors.

Door release knife (option)
This knife helps the free flow of material by clearing the door opening and prevents accumulations. It also improves the movement of ingredients at the bottom of the mixer to speed up mixing.

Extension kits (option)
The 12” (30 cm) extension prevents overflow while loading the mixer. The flexible rubber extension is recommended for tractor loading, the steel extension may be used for conveyor-loading.
