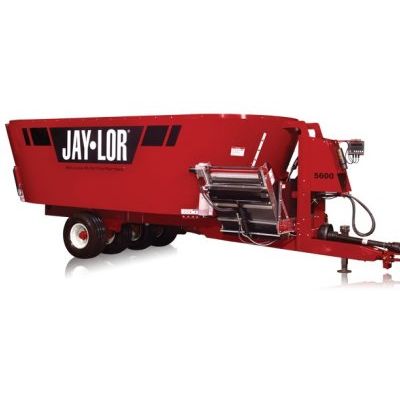

Jaylor - Model 5600 - Vertical Total Mix Ration (TMR) Twin Auger
Jaylor’s low-profile twin auger mixer is ideal for dairy or beef operations loading with a skid steer, or where door height is limited. The 5600 also incorporates Jaylor’s patented auger that produces a TMR that resists sorting, assisting in the prevention of acidosis; meaning your farm could see improved feed efficiency and dry matter intake (DMI). Available with a dozen door configurations, and 6 conveyor sizes we have a setup that will work for your operation.
Most popular related searches
vertical TMR
twin auger mixer
vertical TMR mixer
total mix ration
TMR auger
skid steer
TMR mixer
dairy beef
vertical auger mixer
dairy operation
- Square Cut Auger with Sloped Top
- Slide Plate Technology
- Tungsten Carbide Coated Knives
- Welded Mixing Chamber
- Shaker Box
- Mixer Level
- Mix Viewing Window
- 2 Restrictor Blades
- Reinforced Frame
- Rapid Discharge Door
- Galvanized Discharge Conveyor
- Heavy Duty Adjustable Cast Hitch
- Heavy Duty Hubs
- Dual Oscillating Axles
- Ladder and Platform
- 3 Point Weigh System
- Planetary Gearbox
- Easy View Oil Reservoir
- Angling Blade Auger
- Alexander Knives Vertical Knives
- Hay Ring
- Plastic Extension Upgrade
- Rear Door
- Corner Door
- Drop Floor
- Discharge Conveyor, Left or Right
- Dual Discharge Flat Conveyor
- Flip-Up Conveyor
- Discharge Magnet
- Rubber Flap
- Dual Conveyor Boot
- Tire Upgrade
- Low Profile Tire Upgrade
- Door Chute
- HD axle with Dual Tires 245/70R19.5
- Fenders
- Road Light
- Battery Mount
- Safety Chains
- #8 Constant Velocity PTO
- 2 Speed Transmission
- Remote Transmission Shifter
- STAD 04 PLUS² Indicator Upgrade
- WIN SCALE² Indicator Upgrade
- TOP SCALE IC Indicator Upgrade
- Cab Remote Display
- Weight Repeater Remote Display
- Alphanumeric Remote Display
- Dina-Tel 2 for Full display
- Wi-Net Modem
- P2P Major Functions Remote
- Mixer Control by Office PC
- Software For Mixer & Feeding Management
- Motor Controller Automate Mixer Operation
- Sloped top Square-Cut Auger
- 3-Point Weigh System with DG500 Indicator
- Rapid Discharge Door with Self-Cleaning Tracks
- Galvanized Conveyor for Longevity
- Ladder and Viewing Window Standard
- Heavy Duty Dual Oscillating Axles and Hubs
- Heavy Duty Adjustable Cast Hitch
- Tungsten Carbide Coated Knives
- Patented Open Loop Oil Reservoir
- Shaker Box to Optimize Your Mix
- Sloped top Square-Cut Auger
- 3-Point Weigh System with DG500 Indicator
- Rapid Discharge Door with Self-Cleaning Tracks
- Galvanized Conveyor for Longevity
- Ladder and Viewing Window Standard
- Heavy Duty Dual Oscillating Axles and Hubs
- Heavy Duty Adjustable Cast Hitch
- Tungsten Carbide Coated Knives
- Patented Open Loop Oil Reservoir
- Shaker Box to Optimize Your Mix
- Capacity No Extension: 615ft3 | 17.4m3³
- Capacity 8" Extension: 675ft³ | 19.1m³
- Capacity 12" Extension: 720ft³ | 20.4m³
- Capacity 16" Extension: 765ft³ | 21.7m³
- Weight: 12900lbs | 5900kg
- Height: 93in | 236cm*
- Length: 303in | 770cm
- Drum Width: 97in | 246cm
- Pto Speed: 540 RPM
- Minimum Hp: 105 HP
- Auger Speed: 41 RPM
- Number Of Knives: 18
- Auger Flighting Thickness: 5/8in | 16mm
- Max Discharge Height: 60in | 152cm**
- Conveyor Width: 36in | 91cm
- Door Opening Width: 42in | 107cm
- Floor Thickness: 5/8in | 16mm
- Drum Wall Thickness: 1/4in | 6mm
- Standard Tires: 12.5L-15FI LR ‘F’ (4)
- Wheel Assembly: Dual Oscillating
