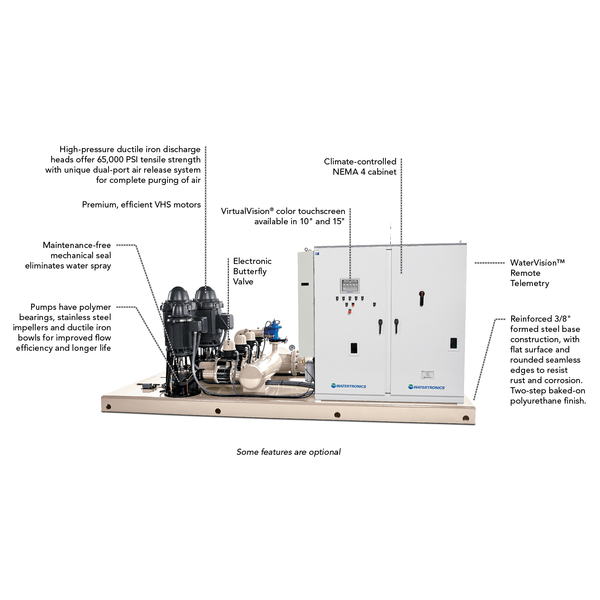

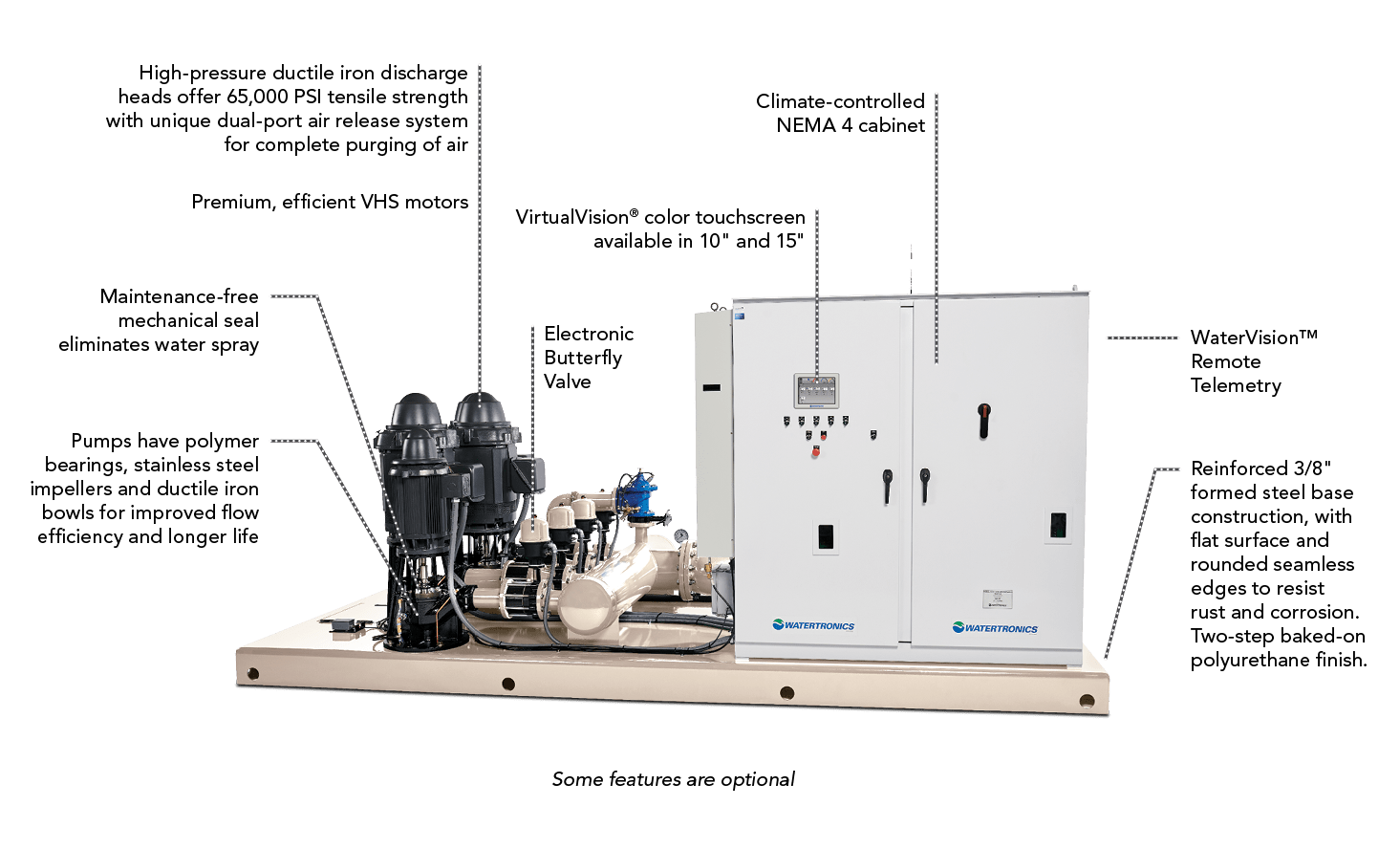

Ideal for pumping from reservoirs, rivers and wells, the vertical turbine (VT) system from Watertronics is a single-source solution that can meet virtually any pressure and flow requirement regardless of water lift or depth. Our advanced pump logic uses actual pump curve data to provide intelligent sequencing for optimal wire-to-water efficiency. Engineered for continuous operation in challenging environments, the VT is reliable, rugged, and long-lasting. Your pump station arrives pre-packaged and factory tested, ready for quick installation and start-up. With proven reliability and pumping efficiency, the VT offers a cost-effective solution and can be fully customized to meet your needs.
Most popular related searches

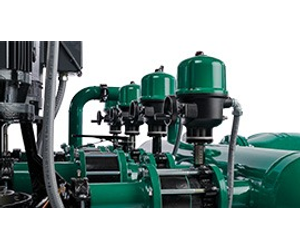

Electronic Butterfly Valve (EBV)
EBV complements VFD controls by pressure regulating each across-the-line pump, eliminating surges, check valve slam, air entrainment and providing 100% backup pressure regulation in the event of a VFD fault.
Watch In Action
Painting
Three-step epoxy coat paint process for maximum durability:1) Steel grit blasting2) Two-part epoxy primer3) Polyurethane top coat is applied and baked to assure adhesion

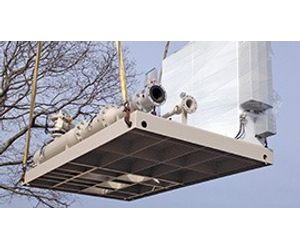

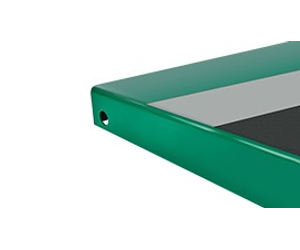

Skid Construction
Reinforced 3/8 in. formed steel base construction, with rounded seamlessedges to resist rustand corrosion. Flat skid surface provides ease of maintenance and reduces water and debris collection.
- Watervision® remote monitoring technology offers user-friendly software to access your pump station from afar.
- Pump-Link® provides real time integration between the irrigation system’s central computer and pump station.
- 15″ color touchscreen
- Sandstone or Green paint
- Mechanical Seals
- Electronic Butterfly Valves
- Magnetic Flow Meters
- Filtration
- Surge Protection
- Composite Enclosure
- EZ Feed Fertigation
- Lake Level Controls
- Intake Screens
- Power Packs
- Z and Custom Discharge pipes
- Filters designed to resist rust and corrosion with pressure transducers upstream and downstream for superior flushing performance.
- Filter Flush Valve which uses a dirty water tolerant Electric Butterfly Valve rather than a Hydraulic Diaphragm Valve.
- Automatically self-draining freeze-proof heat exchanger.
- Programmable logic controls which incorporate unique algorithms to optimize pressure regulation and pump pressure characteristics to reduce pressure surges.
- Variable Frequency Drives assure near perfect pressure regulation and incorporate ride-through protection to keep systems operational following loss of power or alarm.
- VirtualVision™ is our easy-to-use touchscreen operator interface with a LCD display for monitoring alarms, changing pump sequencing, adjusting downstream pressure, changing filter flush duration, recording or resetting water usage, calibration, and more.
- Watervision® remote monitoring technology offers user-friendly software to access your pump station from afar.
- Pump-Link® provides real time integration between the irrigation system’s central computer and pump station.
- Reservoir level controls provide repeatability within a fraction of an inch.
- Unitized skid construction offers a continuous rust-protected sheet of pre-punched steel, free of welding seams which are unnecessary points of weakness.
- Rust-fighting coatings are individually applied in a process that includes metal preparation, a rust-inhibitive coating, baked epoxy prime coat, and two-part ultraviolet insensitive baked polyurethane finish.
- Inverter Duty Energy Efficient VHS motors.
- High-pressure ductile iron discharge head, which offers 65,000 PSI tensile strength with radial discharge flow for improved efficiency and corrosion resistance, and unique dual-port air release system for complete purging of air.
- Porcelain-lined ductile iron bowls. High-Efficiency stainless steel impellers with a flow-optimized design and smooth, frictionless surface.
- Filters designed to resist rust and corrosion with pressure transducers upstream and downstream for superior flushing performance.
- Filter Flush Valve which uses a dirty water tolerant Electric Butterfly Valve rather than a Hydraulic Diaphragm Valve.
- Automatically self-draining freeze-proof heat exchanger.
