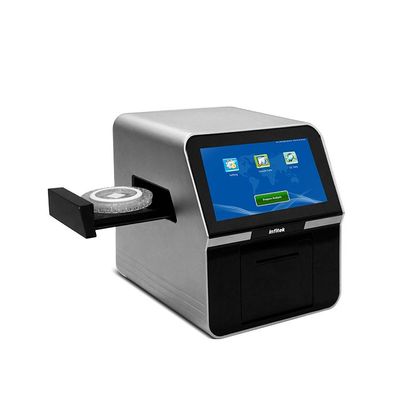

Infitek - Model BA-VA-120 -Veterinary Chemistry Analyzer

• Completely new chemistry, electrolyte, immunoassay and coagulation analyzer
• Easy to Carry
• Sample volume: 90-120μL
• Testing time: 12minutes/sample

• Small sample volume

Sample volume required for analysis is only 1/10-1/20 when compared to traditional

chemistry analyzers.

• Easy to Carry

5kg. The analyzer was designed to be portable and have a small footprint, ensuring that it can be used anywhere at any time.

• Less Maintenance

No maintenance consumables, such as tubing，pumps or valves required，which saves on maintenance expense.

• Accurate Results

The analyzer utilizes the photometric colorimetric principle， which is superior to the dry chemistry analyzer using a light reflection principle. The accurate rotor mould guarantees consistent test sample and dilution volumes，eliminating random error and cross contamination.

• Sample volume: 90-120μL
• Bar code: Two-dimensional bar code
• Testing time: 12minutes/sample
• Temperature: 37℃±0.2℃
• Resolution: 0.001Abs
• Absorbance: 0-3.0Abs
• Sample type: Anti-coagulated whole blood, serum, plasma
• QC&Calibrate: Real time full-auto finish
• Operational environment: Temperature:10-32℃; Humidity: <85%
• Testing principle: Absorption spectroscopy，transmission turbidimetry
• Testing method: End point, kinetic，fixed time and turbidmetry
• Light source: 12V/20W,halogen tungsten lamp’s life span is over 2500 hours
• Electricity: AC100V-240V , 50-60Hz
• Display: Android 6.5 inch 800*480，multi-point capacitive touch screen
• Storage: 4G，> 100.000 results
• Printer: Built-in thermal printer
• Connector: 2 USB ports
• Dimensions（W×D×H）: 345×315×405
• Weight: 5 Kg
• Language: English, Portuguese, Spanish, German, Russian, Italian
