Dawei - Model DE12A-VET - Veterinary ...

Dawei - Model DE12A-VET -Veterinary ECG Machine - 12 Channel

FromDawei Veterinary Medical (Jiangsu) Co., Ltd.

SHARE

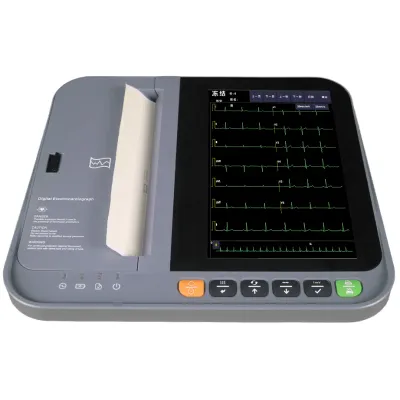

The Dawei 12 Channel Veterinary ECG Machine, model DE12A-VET, is designed to measure cardiac activity across a broad spectrum of animals, including pets like dogs and cats, as well as livestock and laboratory animals. It features a 10.2-inch high-resolution LCD screen with a capacitive touchscreen for intuitive operation. This ECG machine can store up to 1000 data records, making it suitable for frequent use in veterinary practices. Connectivity through USB, wired, and wireless networks allows for seamless integration with medical systems, enabling network-based diagnostics. It offers six recording modes and supports various storage formats (JPG, PDF, DAT), ensuring flexible use of digital data. This device aids in diagnosing cardiovascular conditions such as arrhythmias and cardiomyopathies. It includes essential accessories like ECG lead wires and electrode clips, and is optimized for use in diverse veterinary environments.

Most popular related searches

veterinary practice

animal research

veterinary diagnostics

Dawei 12 channel veterinary ECG machine:

Adopt a 10.2-inch high-resolution LCD screen with a standard capacitive touchscreen.;

Stores up to 1000 data records, supports data transfer via USB drive;

Supports data transfer via USB drive, wired network, and wireless network, facilitating network-based diagnosis;

Offers 6 recording modes to meet the diagnostic needs of various departments;

Supports multiple storage formats such as JPG, PDF, DAT, and more, making full use of data in the digital age;

The 12 channel veterinary ECG Machine is typically used on small, medium and large animals, including livestock, pets (e.g., dogs, cats), laboratory research animals and more.
Veterinary electrocardiogram device is mainly used to detect and monitor the heart activity of animals to help diagnose cardiovascular diseases, including arrhythmia, cardiomyopathy, heart valve problems, and so on. By recording an ECG, doctors can assess the animal's heart health.

Support language: China/UK/Russia/France/Germany/Portugal/Spain Leads synchronised ECG acquisition;
Equipped with high-speed, high-sensitivity hotspot recording system with print track depth adjustment function;
10.2-inch high-definition wide-angle colour LCD screen, capacitive touch control, 12-lead display;
Single line/3 channel/(3+R) channel/(+l+V5) channel/dual line 6 channel/single line 6 channel/single line/dual line 12 channel Eight ECG display combination modes;
Veterinary electrocardiograph with automatic diagnosis function, with heart rate exceeds the standard alarm function, can be set whether to print the measurement and analysis report;
With real-time ECG waveform freezing function, you can easily grasp the important ECG waveform of the patient;
With RS232 communication interface, USB interface and LAN network interface;
It has the function of wire break detection and paper out detection;
Veterinary 12 channel automatic ECG analysis system: ECG automatic diagnosis function, automatic measurement and analysis of ECG for doctors' reference.
High-resolution thermal matrix printout; baseline stability test ensures neat and beautiful waveforms for each ECG;
