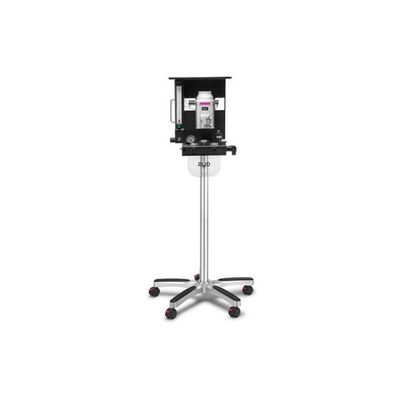

RWD - Model R620-S1 - Veterinary Inhalation Anesthesia Machine

• High accuracy vaporizer, each one has an independent report
• APL valve for quick-occlusion, convenient for intraoperative emergency needs
• Rail-mounted CO2 absorber, so easy to install and disassemble
• 0-4L/min flow meter, red cylindrical float,stable and easy to read
• Good waste gas scavenging system, remove waste anesthesia gases from the operating room
• Simultaneously equipped with rebreathing and non-rebreathing circuit systems, and can
• be shifted by one switch
• Two options for pole mounts: five-foot base/H-base
• Support hanging E-type oxygen cylinder
• Convenient monitor shelf
• Limited 3-year warranty

Veterinary Teaching
“We have received the anesthesia machine and we are using it with our students and colleagues in our post-degree program. The device works fantastically well. ” -Faculty of Veterinary Science. UBA

Veterinary Clinic
“The machine is working fine and very easy to switch from non-breathing to breathing circuit with one switch.”
-Waterloo West Animal Hospital

Veterinary Clinic
“It is not only very efficient but also very economical to run (saving anesthetics), and its portability makes it ideal to use anywhere in the Hospital.  ” -Santa Lucia Veterinary Teaching Hospital

• Applicable to animals that weight within 100kg.
• 0.1 to 4 L/min O2 flowmeter
• 10L/min O2 flush.
• APL valve can be closed quickly with one button.
• 2100cc CO2 absorber.
• Three kinds of filling type vaporizer is optional-Pour Fill, Easy Fill and Key Fill.
