UMG Universal - Veterinary Systems

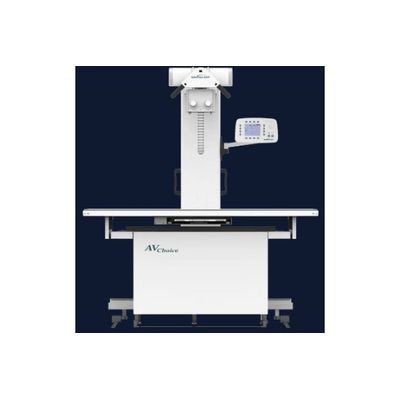

The Universal Veterinary System is equipped with an integrated tube stand with variable SID and an anatomically programmed, high-frequency generator providing an all-in-one imaging solution. Our veterinary systems are perfect for the veterinarian who seeks affordability and maximum capability, especially in smaller imaging environments.
The Universal Veterinary System features an angulating tube arm, 2-way or 4-way float top table, and can be configured with a fixed or variable SID tube stand. The variable option allows for a greater range of motion that provides technologists with enhanced patient positioning.
The system features several modifications that provide ease-of-use and convenience. The perimeter of the tabletop has a urine trap to permit easy cleanup. Caring for animals can be stressful and require uninterrupted attention. With this in mind, our veterinary tables come equipped with easy to reach operator footswitch/treadles on all sides to allow veterinarians the ability to focus on the animal, while also operating table movements.
The Vieworks VXView image acquisition software produces images with exceptional clarity and resolution, perfect for even the smallest animal anatomy.
- PATIENT LOAD CAPACITY : 400 lbs (181 kg)
- TABLETOP LENGTH (STATIONARY / 2-WAY FLOAT) : 56 in (142 cm)
- TABLETOP WIDTH (STATIONARY / 2-WAY FLOAT) : 28 in (71 cm)
- TABLETOP LENGTH (4-WAY FLOAT) : 68.5 in (174 cm)
- TABLETOP WIDTH (4-WAY FLOAT) : 31.5 in (79 cm)
- TABLETOP HEIGHT : 34.5 in (87.6 cm)
- TUBE STAND HEIGHT : 77 in (196 cm)
- SYSTEM DEPTH : 38.5 in (98 cm)
- MOTORIZED SID TRAVEL SPEED : 0.4 in/s to 5.1 in/s
- RECEPTOR ROTATION ANGULATION : ±45°
- TABLE VOLTAGE : 24 VDC
