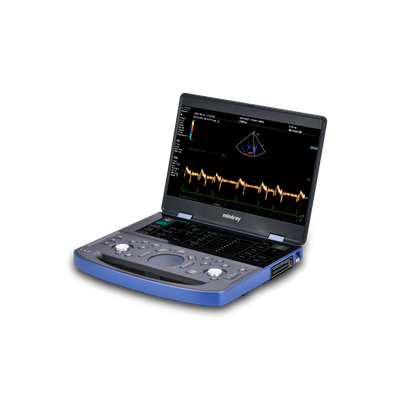

IMVModel Mindray Vetus E7 -Veterinary Ultrasound Scanner

SHARE

The first portable ultrasound system powered by the new cutting edge Zone Sonography Technology (ZST+) platform, unique to Mindray.

Most popular related searches
  • The Vetus E7 system combines best-in-class image quality with an intuitive user experience to helo ensure reliable and efficient diagnosis during the most challenging exams
  • Maximise the use of the scanner in practice by combining the Vetus E7 with a multi-probe cart to allow fast and easy access to the full range of probes at your disposal, increasing the quality of patient diagnosis and adding value to your client consultations.
  • All-day battery design that supports up to eight hours of continuous scanning

  • System type (portable/cart): Portable
  • Console form (clam shell/touchscreen): Laptop
  • Number of probe connectors on console: 1
  • Screen size: 15.6 inch
  • Optional trolley:
  • Multi-probe compatibility on trolley: Y x3
  • Colour Doppler:
  • Pulse Wave Doppler: Continuous Wave Doppler:
  • ECG:
  • Width (mm): 364
  • Depth (mm): 322
  • Height (mm): 44
  • Weight (kg): 3
  • Battery included?:
  • Battery life (mins): 90/480 (U bank)
  • Warranty: 1 year
  • Small animal:
  • Exotic:
  • Equine:
  • Bovine:
  • The Vetus E7 is available with a comprehensive range of probes for abdominal and musculoskeletal scanning and has a full range of probes and software applications for cardiology.
  • The Vetus E7 with a single micro-convex probe (M-C11-3s , 3-11 MHz) can be used to perform abdominal and cardiac examinations on a wide range of species including dogs, cats, rabbits and reptiles whilst the M-L13-3Ns linear probe is great for superficial high detail work and equine tendons.
  • Add a cardiac probe (such as the M-P8-2s for small animals or M-P4-2s for equine) along with Continuous Wave Doppler and ECG to provide you with a great system to do more advanced heart scans.
  • Maximise the use of the scanner in practice by combining the Vetus E7 with a multi-probe cart to allow fast and easy access to the full range of probes at your disposal, increasing the quality of patient diagnosis and adding value to your client consultations.
