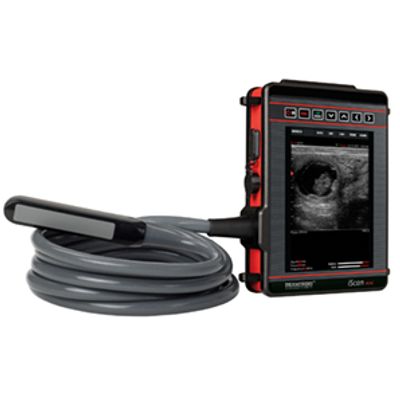

Draminski - Model iScan Mini -Veterinary Ultrasound Scanner

Efficient work in every conditions with DRAMIŃSKI Goggle System

This time our newest model of ultrasound video goggles is more comfortable, with excellent adjustment on the user’s head. If you examine a lot of animals in a row or work in very light rooms, these goggles with clear, legible image will make your work more comfortable.

OLED Goggles

• resolution: 800x600,
• display: OLED, color,
• weight of the set with the headband: 290 g,
• OLED goggles consume 5x less energy than the display, so you can work longer,
• the design of the goggles allows you to simultaneously see the displayed image and control the surroundings,
• adjustment in 5 points and the light weight of the set will allow you to work for long hours without discomfort,
• they do not require charging, the goggles are powered by an ultrasound scanner,
• eyecups for sunny days included.

What makes the DRAMINSKI iScan mini the perfect choice?

SMALL AND TOUGH

Barely larger than a palm of a hand, iScan mini is made of aluminium, which makes it extremely durable. Its external dimensions are 170x140x52 mm, with a large, 5 inch screen. State of the art technology enclosed in a miniature size.

LIGHTWEIGHT

A ready to work iScan mini weights only 1350 grams, which means that even many hours of work will not strain your back.

OPTIMISED WORKFLOW

All the necessary functions are always within reach. This is provided by programmable function keys, which we have designed based on conversations with many specialists. If you want, you can adapt the keys to your needs.

AUTOMATIC FOLLICLE MEASUREMENT

Rapid and precise measurement you can rely on. You no longer need to wonder at what location the largest dimension of the follicle is located. iScan mini will do this for you.

WIRELESS COMMUNICATION

An interesting case? Or maybe an ambiguous image? Share an image or consult a colleague. Now sharing images and cine loops is fast and easy. All of this thanks to the built-in WiFi antenna and new, free app for Android mobile devices.
niewielka-waga-kg

CLEAR IMAGE

LuciD is a function which reduces noise in the image and improves the clarity of the image.

SCREEN AND GOGGLES

Use a built-in screen or OLED goggles — it’s up to you! The image will be always clear and contrasted.

The set includes:

• Ultrasound scanner with a linear rectal probe
• External battery
• Battery charger with a 230 V charging cable
• Carrying belts
• Transport case
• User guide on a USB drive

Additional equipment

• OLED goggles
• Linear rectal probe extension for cattle
• Linear rectal probe extension for sheep

Warranty:

• 24 months for the ultrasound scanner
• 6 months for the battery

• Dimensions  140 x 170 x 52 mm (width x height x depth)
• Weight of the device   1350 g with the probe and the battery
• Weight of the battery   292 g
• Purpose  Ultrasound diagnostics of farm animals:
• Diagnostics of the reproductive tract
• Confirmation and monitoring of pregnancy
• Determination of sex of foetus
• Determination of age of foetus
• Measurement of backfat thickness
• Ultrasound examination of the lungs
• Uses other than specified above are not excluded
• Image display modes  Screen
• Goggles
• Image rotated by 90°
• Image rotated by 180°
• Greyscale  256 shades
• Gamma  10 settings
• Display screen  5.0” diagonal
• IPS LCD LED
• 500 cd/m2
• 480 x 800 px
• Probe  Electronic, broadband
• 7 MHz, 60 mm.
• Method of connecting a probe  Permanent
• Keyboard  Membrane, water resistant
• Imaging mode  B Mode
• B+B Mode
• Image management  Freezing the image
• Dimensioning
• Zoom 100–160% at 20% increments
• Saving to internal memory
• Exporting to external storage device
• Exporting to mobile devices with the use of WiFi
• Measurements  Distance
• Follicle (automatic)
• Area (from 2 measurements)
• Saving data to the memory  Image with measurements
• Cine loop (max. 512 frames)
• Image memory  200
• Cine loop memory  200
• Data transmission  USB-C
• WiFi (to Draminski App)
• Presets  May be created by the user
• Power supply  Li-Ion, 14.4 V, 2.25 Ah
• Continuous operation when the battery is fully charged  Up to 3:40 hours
• Charging of the battery pack  3 hours
• Battery charge indicator  Automatic — graphic indicator
• Protection class  IP32
• Protection against objects larger than 2.5 mm
• Protection against water dripping at an angle of a maximum of 15 degrees
• Operating temperature  From 0°C to +40°C
• Recommended storage temperature  From 0°C to +40°C
