IMV - Model GE Logiq e (R9) -Veterinary Ultrasound Scanner

FromIMV imaging

SHARE

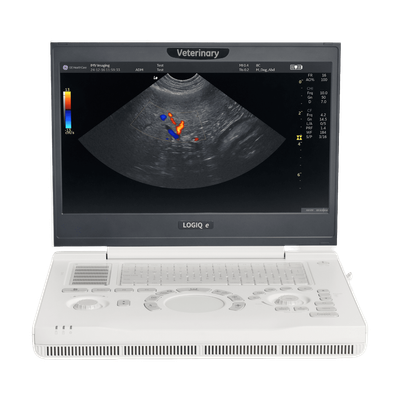

Superior image quality for small animal and equine applications within a robust, portable ultrasound system that is suitable for first opinion and referral level veterinary practices. The Logiq e utilises 128 channels to provide superior image quality in a compact, portable ultrasound scanner. For many years the Logiq e has been the choice for the discerning vet who wants to get the best possible image quality in a portable ultrasound scanner. The latest version of the Logiq e continues the trend by offering exceptional image quality, flexibility and versatility in a compact and durable laptop style form factor.

Most popular related searches

veterinary ultrasound

veterinary ultrasound scanning

veterinary practice

veterinary scanning

veterinary ultrasound imaging

veterinary imaging

The Logiq e R9 is a reliable system that can cope with the demands of the veterinary practice, with an improved, premium and durable design. The keyboard and trackpad is sealed, reducing chance of moisture and hair ingress
The R9 version offers an improved user interface from previous editions.
Portable and light-weight 5kg scanner with 90 minute battery life for extended in field scanning.
15 inch LED display for high quality image viewing in a wide range of viewing environments.
Cutting edge software, features and a solid state drive to improve processing speeds, workflow and responsiveness saving you valuable time and making a busy day in practice that bit smoother.
M-Mode, Pulsed Wave and Continuous Wave come as standard, with the ability to upgrade the scanner for more advanced cardiac scanning.
Dedicated veterinary presets for small animal and equine use.

System type (portable/cart): Portable
Console form (clam shell/touchscreen): Laptop
Number of probe connectors on console: 1
Screen size: 15 inch
Optional trolley:
ulti-probe compatibility on trolley: Opt x3
Colour Doppler: Pulse Wave Doppler:
Continuous Wave Doppler: Opt
ECG: Opt
Width (mm): 295
Depth (mm): 346
Height (mm): 70
Weight (kg): 5.2
Battery included?:
Battery life (mins): 90
Warranty: 1 year
Small animal: Exotic:
Equine: Bovine:

The Logiq e is available with a comprehensive range of probes for abdominal, musculoskeletal and cardiac scanning.
NEW for the R9 model, the 12S-RS probe, supporting cardiac assessment in cats.
The Logiq e with a single micro-convex probe (8C-RS, 4-10 MHz) can be used to perform abdominal and cardiac examinations on a wide range of species including dogs, cats, rabbits and reptiles.
Compatible with the C1-4-RS abdominal probe, resulting in fantastic imaging for larger dogs and horses. As well as the 3Sc-RS (horses and large dogs), and 6S-RS cardiac probes, which in combination with Continuous Wave Doppler and ECG to provide a great solution for cardiac scanning applications in both small animal and equine practice.
The 12L-RS linear probe is great for superficial high detail work and high detail imaging on equine tendons, whilst the L8-18-RS is a high frequency hockey stick probe for even higher resolution imaging on superficial structures (cat spleens and kidneys) or for ophthalmic scanning.
Maximise the use of the scanner in practice by combining the Logiq e with a cart (multi-probe optional) to allow vets fast and easy access to the scanner and optimise the use of diagnostic imaging in practice.
