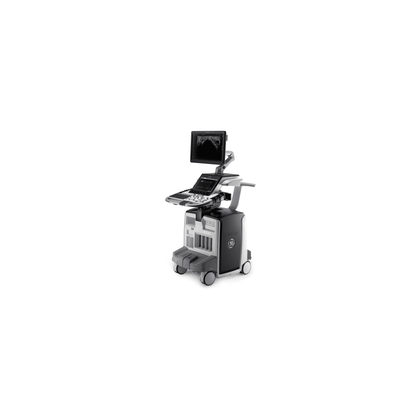

IMV - Model GE Logiq E10/E10s -Veterinary Ultrasound Scanner
FromIMV imaging
Top of the range cart-based systems providing advanced image quality and tools for referral level equine and small animal practices. Part of the next generation of market-leading ultrasound systems from GE, the cart-based LOGIQ E10 and E10s ultrasound scanners offer advanced veterinary imaging capabilities for small animal and equine ultrasound examinations. The E10 family uses GE’s proprietary cSound architecture to produce incredible image quality and removes the need for a focal zone control as the entire image from near- to far-field is always in focus.
Most popular related searches
veterinary ultrasound
veterinary ultrasound scanning
veterinary
veterinary imaging
clam shells
produce quality
horse
veterinary scanning
veterinary ultrasound imaging
- Large 24” High Definition fully adjustable monitor with additional 12” touchscreen provides excellent image quality and operator comfort whilst scanning.
- XDClear – uses the latest single-crystal, broadband probe technology to increase maximum imaging depth whilst maintaining excellent image quality and clarity.
- A true shared service system capable of producing the highest quality abdominal images as well as performing echocardiography with the addition of Continuous Wave Doppler and ECG options.
- Auto Optimisation allows you to achieve the best imaging settings in one keystroke. State of the art imaging modalities such as Coded Contrast, 4D (real-time 3D), Elastography (strain wave and shear wave) and B-Flow to improve your diagnostic capabilities.
- B-Steer+ needle recognition software to increase biopsy accuracy
- Volume navigation fusion imaging – merge real time ultrasound with previously acquired CT and MRI images for side-by-side comparison .
- Volume navigation needle tracking – visually track your needle position during a scan, and use GPS-like technology to mark lesions and points of interest.
- System type (portable/cart): Cart
- Console form (clam shell/touchscreen): Trolley
- Number of probe connectors on console: 4
- Screen size: 24 inch
- Optional trolley: Trolley-based
- Multi-probe compatibility on trolley: 4
- Colour Doppler:
- Pulse Wave Doppler:
- Continuous Wave Doppler: Opt
- ECG: Opt
- Width (mm):585
- Depth (mm): 901
- Height (mm): 1300
- Weight (kg): 126
- Battery included?:
- Battery life (mins): NA
- Warranty: 1 year
- Small animal:
- Exotic:
- Equine:
- Bovine:
- The Logiq E10 is available with a comprehensive range of probes for abdominal, musculoskeletal and cardiac scanning.
- The Logiq 10 has a range of micro-convex (C3-10-D and C2-9-D) and large convex probes (C1-6-D and C2-7-D) to allow you to specify a system that best fits the needs of your practice.
- Linear probes are available that range from the low frequency L2-9-D and L3-12-D probe, via the matrix ML6-15-D and ML4-20D, all the way through to the high frequency hockey stick linear L8-18i-D and L6-24-D probes for exceptional high detail superficial imaging.
- M5Sc-D and 6S-D cardiac probes along with the 6TC-RS trans-oesophageal probe enable the use of the Logiq E10 family as shared service systems.
- A wide range of advanced scanner software options are available such as Coded Contrast Imaging, Shearwave Elastography and Strain Elastography. Volume Navigation is also available on certain probes (may require purchase of specific volume navigation (VN) probes).
