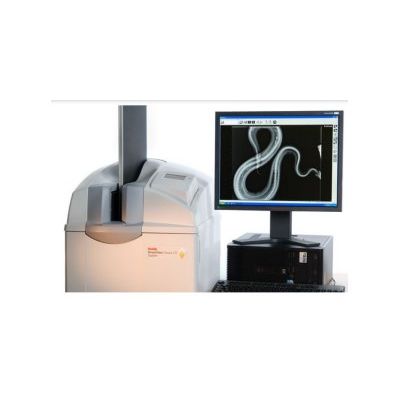

Carestream Classic - Veterinary X-ray CR System
The CR Classic veterinary X-ray system will meet the demands of your medium to high throughput practice. Producing high quality X-rays and increasing efficiency of your X-ray function. Computed Radiography for more demanding practices. Great images, easy to use.
- Fast processing: images processed in 60 seconds
- Easy to use: All members of staff can be quickly trained
- Size: Compact footprint allowing you to fit it easily into your existing practice set up
- Increase X-ray productivity: produce more high quality X-rays in less time
- Adjust your image: if its just not quite right.
Producing up to 60 cassettes per hour, your demanding practice will benefit from the speed of the Classic. You will never be left waiting for an image again.
The Classic CR X-ray system will make the X-ray function in your practice easy. Training your staff to use the Classic is simple. Staff members of all backgrounds and experience levels will quickly become familiar with using the system.
The high quality, clear images produced by the Classic will cut the number of re-take X-rays you need to do. Cut down on time, increase productivity and reduce costs. Whilst also increasing the level of patient care.
You will no longer need to maintain a wet chemical processor. Your staff will love the extra time they will have to spend on patient care rather than wet processor care.
The Classic allows you to make slight adjustments to your image if it is not quite right. You can crop the image; adjust the brightness, zoom and pan. Saving you time by cutting down on retaking radiographs.
Storing your digital images will be both easier and will take up less space in the practice. Why not find out about our PACS options available for safe storage of your images.
The Classic has a compact footprint meaning it will easily fit into your existing practice, whether it be an old dark room or into your current X-ray room. You also have the option of wall mounting the flat screen monitor.
Applications Small animal and equine
Price bracket (inc one probe) £20,000 - £30,000 (€25,000 - €37,000)
CR or DR technology CR
Time to display image Approx 1 minute
Workload High
Use with your existing generator
Cassette/plate construction High resolution PQ rigid phosphor screen
Suitabile for horizontal beam work
Portable
Greyscale resolution - acquisition 16 bit per pixel
Greyscale resolution - display 12 bit per pixel
Monitors available 19" touch screen monitor
DICOM compatible
Compatible with BCF PACS
Operating conditions 15 to 30 degrees C, 15-75% relative humidity, non-condensing
Storage conditions Minus 23 to +66 degrees C, 5-86% relative humidity, non-condensing
Accessories Floor stand with cassette holder - dimensions (w x d x h) 77.9 x 55.9 x 111.5 cm
Warranty 1 year
Dimensions and weight
Processor unit dimensions (w x d x h) 48.2 x 60.3 x 102.8 cm
Weight (processor) 136 Kg
Cassette/plate imaging area 18 x 24 cm 24 x 30 cm / 35 x 43 cm / 15 x 30 cm / Other sizes available
Fits into a bucky tray
Processor fits on standard kitchen worktop
