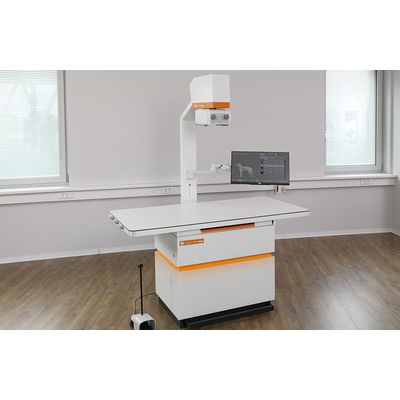

OR Technology - Model Amadeo V mini II - Veterinary X-Ray System With Swivelling Monitor
Space-saving full X-ray system for veterinary medicine with swivel monitor and standard socket operation – now ‚Made in Germany‘
The Amadeo V mini II X-ray machine has been specially designed for the requirements in veterinary medicine and is particularly suitable for small veterinary practices. The completely flat 4-way floating table without upstands will convince you. This veterinary X-ray system is a completely in-house creation "Made in Germany" by OR Technology and the result of close cooperation with veterinarians and university institutions.
The PC as well as a drawer for storage aids are inserted directly into the X-ray table to save space. The 32 kW high-frequency generator with rotating light visor is also integrated in the X-ray table. The foot brake on the table can be used to stop the movement of the table top and to operate the light on the collimator. A standard wall socket is sufficient to power the system. No major conversion measures are required.
The 180° swivel and height-adjustable touchscreen monitor allows convenient operation of the X-ray software (acquisition and reporting) in a very confined space. The integration of your practice management system is a matter of course for us.
A 3-stage LED status display on the X-ray stand provides simple visualisation of the operating status. With the help of the 2-step foot switch, the X-ray shot can be prepared and triggered.
As a special highlight for the small animal practice, there is the possibility to have the Amadeo X-ray tables artistically designed. The well-known artist from Rostock Felix Fugenzahn was commissioned to create single-line drawings. Four animal motifs are optionally available.
Three versions are available:
Amadeo V-DR mini II
with built-in CsI X-ray detector 17" x 14"
(active area 43.3 x 35.5 cm)
Amadeo V-DR mini II
with built-in CsI X-ray detector 17" x 17"
(active area 43.2 x 43.2 cm)
Amadeo V-AX mini II
for use with film/CR cassettes or existing DR system without generator control
Economical
The Amadeo V-DR mini II can be used with a standard socket. No major conversion measures are necessary.
Comfortable
The completely level patient table without upstands is equipped with a floating tabletop and silent brakes. It allows for generous movement and can be operated from the front panel. The height-adjustable monitor arm can be rotated by 180°, enabling a comfortable operation of the acquisition software.
Efficient
Thanks to the integration into your existing patient management system the patient data is available at the push of a button.
Visible
Software status display via large LED in 3 colours
Space-saving
The PC is integrated into the X-ray table. Therefore no additional cables or brackets are necessary. Furthermore, the X-ray system has a sophisticated drawer system for positioning aids etc.
Excellent image quality
The high-quality X-ray detector based on a caesium iodide (CsI) scintillator offers top image quality even at low X-ray doses. Especially in direct comparison with the standard, widely used GadOx (Gd²O²S:Tb) detectors, this edge in quality is clearly visible.
User friendly
The professional dicomPACS®DX-R X-ray software for acquisition and diagnostic offers an intuitive and modern graphic user interface. The examinations can be conducted comfortably at the monitor while all necessary adjustments of the X-ray parameters are automatically communicated to the generator.
Fast
Shortly after taking the shot (6 - 8 seconds), the X-ray image is available for viewing and diagnostic evaluation. This ensures a quick workflow.
Cleverly designed
A positioning guide integrated in the X-ray software provides information on the correct positioning technique for any examination of cats and dogs.
Unique
Special measuring functions such as MMP (Modified Maquet Procedure), TTA, TPLO and heart measuring are provided without extra cost.
Compact
The X-ray system boasts a compact and very space-saving build. The 230V high frequency generator is integrated directly into the X-ray table, allowing an installation in confined spaces. Additional cable ducts or space for the generator are unnecessary.
Straightforward
The rotating light visor is equipped with LED illumination/timer and can also be operated via foot switch or foot brake.
Safe
Clamps for attaching restraints: These ties can be used to hold the animal in place so that the staff can leave the controlled area during the shot.
automatic
AI-supported HD measurement for dogs (determination of the Norberg angle)
