Raven VSN - Visual Crop Guidance System

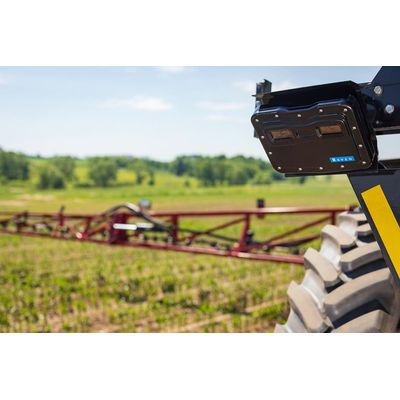

VSN transforms machine guidance through emerged crops. This patent-pending innovation utilizes a non-contact stereo vision camera to navigate crop rows, allowing the operator to focus on all other aspects of effective application control. Minimizing crop damage, covering more acres in a day and essentially providing an easier machine operation leads to a quick return on investment to maximize yield profitability.
- Reduces operator fatigue
- Enhanced steering control and simple operation results in minimal crop damage and more acres covered in each available day
- Operates at high speeds, up to 20 mph
- Operates in challenging terrains, with demonstrated success in areas exceeding 8° of slope
- Maintains row guidance in crops from less than four inches to nearly full canopy
- Quick, one-time calibration with up to five saved profiles for easy crop transitions
- Proven in corn, soybeans, cotton and sorghum
Confidently Apply in Full Canopy Crop
VSN’s new advancements help operators confidently and accurately operate machinery in additional types and stages of crop. Paired with the VSN visual guidance camera, VSN Full Canopy utilizes non-contact radar sensors to guide the machine in full canopy crop. This proactive approach precisely steers the machine at speeds up to 20 mph. This first-to-market, non-contact, multi-sensor approach maintains sub-inch accuracy through varying crop conditions.
- Allows the operator to cover 20% more acres due to increased speed, enables more efficient field planning, and ease of use
- Reduces driver fatigue, allowing operators to increase the average length of their work day
- Drastically reduces crop damage and misapplication in the field, which can cost growers yield and profit of up to 2%
- Outperforms and is easier to use than expensive/complicated RTK networks
- Enhanced machine control for sprayer efficacy
- Reduces operator fatigue and crop damage
- Uses state-of-the-art image sensor and processing technologies to deliver quick response rate and better control
- Tracks machine paths accurately to the actual planting vs. theoretical
- Allows machine ability to automatically adjust to planting inconsistencies or adjustments
- Enables faster vehicle speed
- Works in areas of limited GPS/GNSS coverage — next to tree lines, ditches, hills, etc.
- Live video row overlays in CRX and ROS platforms
- In-field calibration
- ISO UT user interface, custom control widgets
- Slingshot® telematics and OTA software update support
- Pair with Viper® 4+ and RS1™ or SC1™ guidance
GPS/GNSS Mode
- Uses GNSS and guidance lines
- Traditional steering/path planning
VSN Mode
- Row guidance utilizing the image sensing of the VSN camera
- Guides machine when camera quality is above user-defined threshold
VSN+ Mode
- Fall back to GPS guidance (quality below user-defined threshold)
- Ability to use GPS for line acquire and then transition to VSN Mode
