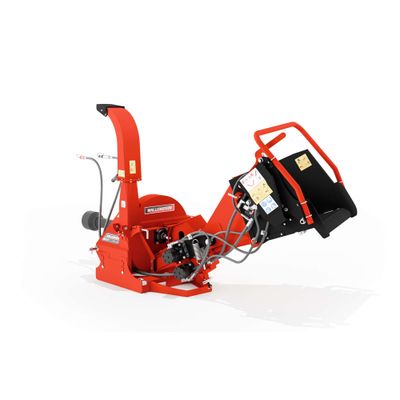

Wallenstein - Model BX36R - PTO Driven Wood Chipper
FromEMB MFG Inc.
3.5" chipping capacity, the BX36R PTO driven wood chipper will handle all your rural and fence line property projects. The two feed rollers are driven by two hydraulic motors dialed in to your desired roller speed. This keeps the oversized heavy duty rotor spinning and processing through all your wood and brush piles.
Most popular related searches
- Chipping Capacity: 3.5" (9 cm)
- Engine HP Range: 15 - 40
- Feed System: Dual Hydraulic Roller
- On-Board Intelligence: n/a
- Chipper Type: Disc
- Required Hydraulic Flow: 3 - 6 gpm (12 - 23 lpm)
- Chipper Hopper Opening: 28" x 20" (89 cm x 76 cm)
- Chipper Infeed Opening: 4" x 9" (10 cm x 23 cm)
- Number of Chipper Knives: 4
- Rotor Diameter: 25" (63 cm)
- Rotor Weight: 125 lbs (57 kg)
- Discharge Chute Height: 60" (152cm)
- Discharge Chute Rotation: 360°
- Winch Pulling Capacity: n/a
- Winch Rope Length: n/a
- Winch Rope Diameter: n/a
- Drive System: PTO Direct Drive
- Rated RPM: 540 - 1000
- PTO Height: 15" - 19" (38 cm - 48 cm)
- Total Weight: 635 lbs (288 Kg)
- Dimensions Open (LxWxH): 72" x 62" x 60" (183 cm x 157 cm x 152 cm)
- Dimensions Folded (LxWxH): 57" x 55" x 60" (145 cm x 140 cm x 152 cm)
- Mounting System: Cat I, iMatch™ & Quick Hitch Compatible
- Adjustable Discharge Chute
- Adjustable Ski Base
- Dual Driven Hydraulic Rollers
- Fold Up Feed Hopper - No Tools
- Oversized Heavy Duty Rotor
- Positional Discharge Deflector
- Reversible Rotor Knives
- Safety Control Bar
- Shearbolt Protected PTO Drivetrain Included
- Twig Breaker
- Wide Infeed Opening
