Waratah - Model H412 - Harvester Head
From Harvesting and Processing Heads
The Waratah H412 is a compact head made for small wheeled and tracked machines. With its powerful feed, accurate measuring, and excellent delimbing performance, the H412 combines the advantages of two and four-wheel-drive harvester heads. Its compact size makes it highly maneuverable in dense thinning stands, and its multi-tree-handling equipment is ideal for energy wood harvesting.
-
Most popular related searches

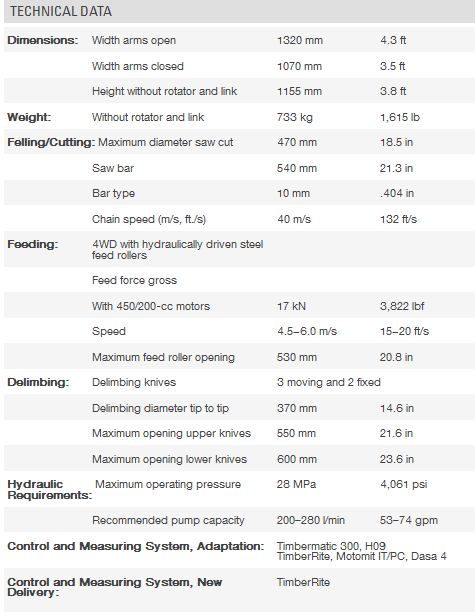

Product Details
- Weight (Without Rotator & Link):733 kg / 1,615 lb.
- Hydraulic Requirements:28 MPa / 4,061 psi
- Cutting Capacity:470 mm / 18.5 in.
- Delimbing Diameter Tip-to-Tip:370 mm / 14.6 in.
The H412 is characterized by its powerful, slip-free four-wheel-drive feed with four hydraulic feed motors. The proven EV02 valve provides efficient hydraulic oil flow and head control. The mainframe is machined after being welded as one piece for high durability and dimensional accuracy. Three moving delimbing knives, along with one fixed top knife and one fixed back knife, follow the contours of the stem.
The efficient SuperCut 100 saw unit provides fast cutting cycles and a maximum felling diameter of 470 mm (18.5 in.). The SuperCut saw unit’s automatic chain lubrication and tensioning improves cutting performance and reduces maintenance time.
Optional Configurations
- Color marking system
- Rotator valve
- Stump treatment
- Rotator and link
- Steel-spiked, ribbed, or V-type rollers
- Feed roller guard
- Multi-tree handling
- Alternative measuring wheel
