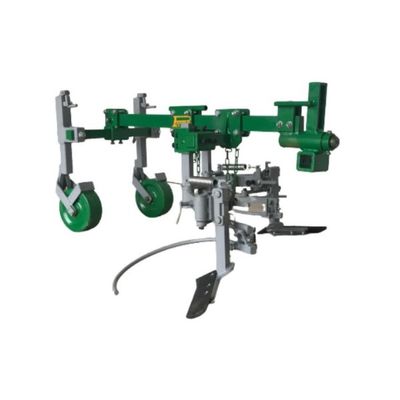

Perrein - Weeding System

FromPerrein SAS

SHARE

Simplicity : Easy to use : no hydraulics and adjustment (spanner 24 and 13). Probe position in height (bud protection) and length (plane protection). Spring tension by pawl and lever. Working depth control by means of gauge wheels, adjustable in height by crank handle and in width by sliding. Width between rows by screw on parallelogram. Quickly mounted on a high-rise or a chase.

Most popular related searches

vineyard system

soil cultivation

crawler carrier

vineyard weeding

weeding equipment

Efficiency :

Fast work : up to 6 km/h on crawler and straddle carriers

Complementarity :

High quality soil cultivation

Highly efficient for regular maintenance and on untreated soil

Working close to the vine stock without the implement touching it

Economy :

Cost savings compared hydraulics solutions
Fuel savings, no hydraulics power used

Precise and versatile :

Weed destruction by root scalping
Possibility to work in "pull" or "push" mode
Can be use with straddle carriers, crawlers and narrow tractors
Gauge wheel holder, brackets and poles for use with other implements
Implement retraction by translation for pass close to the vine stock, thanks to the adjustable sensor
Working depth adjustment, and stability of the machine by gauge wheel (sheet metal wheel D250x100)
Tension adjustment by spring and ratchet
Can be used as an implement holder, with sliding bracket on a pole

Adaptable :

Vines width 1m00 to 1m30
Interchangeable blade for easy maintenance

Technical data :

Blades : 345 mm long in abrasion-resistant steel
Wheel support 50x50 with solid square section
Choice of 6 tension spring positions
