AGI - Welded Hopper Bottom Cones

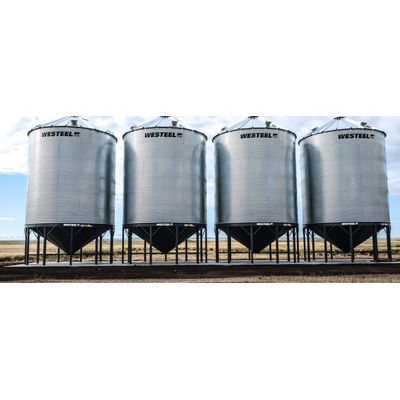

AGI Westeel Welded Hopper Cones made from pressed cone sheets are designed to work perfectly with our Wide-Corr or Standard-Corr bins.
Each cone is manufactured by craftsmen using advanced fabrication methods and heavy gauge steel components throughout. Most importantly, these cones have been specifically engineered to provide optimum support for your AGI Westeel Wide-Corr or Standard-Corr bin, thus protecting your investment and ensuring decades of worry-free operation.
Multiple size options
Available for 14`, 15`, 16`, 18`, 19`, 21`, 24`, and 27` diameter bins.
Support brackets
Upright support brackets (14` and 19` sizes).
Discharge clearance
24" discharge clearance(26" on 16" model).
Cone slope
35° cone slope.
Built strong
Heavy-duty steel construction.
Durable
Engineered for long life.
Inspection hatch
Inspection hatch on bottom of cone.
Vented legs
One piece vented legs.
- Pressed cone sheets
- Standard rack and pinion slide gate(with long handle)
- 5-step superior metal preparation prior to paint application
- State-of-the-art direct to metal (DTM) paint on both interior and exterior surfaces
- Structural welds are Canadian Welding Bureau Certified
- 10-year structural warranty
- 30-month paint warranty
- Rocket aeration kits
- Engineered multi-ring steel foundations
- Pail spouts
- Removable hopper to ground ladder
- Fixed hopper to ground Ladder
- Auger boots
Protect your AGI Westeel cone and bin (and the commodities it stores) with an engineered Westeel foundation.
This heavy-duty foundation requires no concrete and is manufactured from HSS tubing, so it will be easy to move should your storage needs change down the road. Professionally engineered, it is more robust than competitive designs, and features two, three or four rings (depending on your bin’s size) to provide as large a footprint as possible for your bin. The larger the footprint, the more your hopper bin’s load is dispersed – and the greater its stability. Don’t take chances with your bin and cone investment. Insist on a Westeel foundation.
