Western Excelsior - Model Falcon F170-SW-Z Series -Percussion Driven Anchor (PDA)

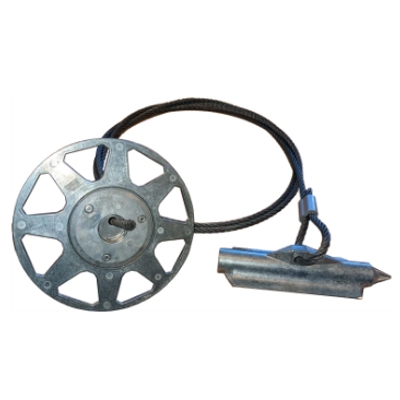

Falcon Percussion Driven Anchors (PDAs) are designed to provide drive efficiency and maximize load capability across a wide range of applications. The F170-SW-Z assembly consists of a top plate that allows for vegetation establishment with one-way wire grip, tethered to a deep-seated earth anchor. Once the anchor is driven into the ground, typically 6 feet (1.8 m), the top plate is secured to the ground and held fast, holding an HPTRM or structure firmly in place. The anchor and cable grip of the F170-SW-Z are cast in the USA. The assembly is fabricated in the USA. The F170-SW-Z assembly allows for re-tensioning, negates the need for time consuming cable crimping and comes fully assembled.
