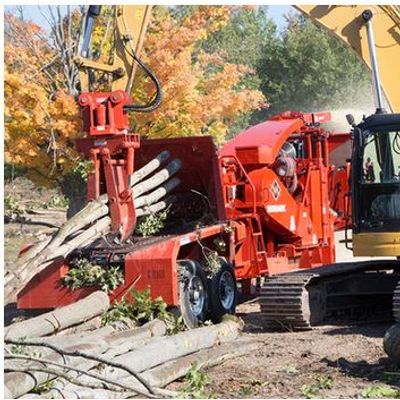

Morbark - Model 30/36 - Whole Tree Drum Chipper

FromDenis Cimaf Inc, a brand of Morbark, LLC

SHARE

The Morbark 30/36 Whole Tree Drum Chipper’s high production rate lowers operating costs by increasing fuel efficiency. The aggressive live floor feeding system with two strands of durable WHD-120 chain and a large top and bottom feedwheels ensure positive feeding of material, including brushy tops and limbs. Morbark’s Advantage 3 Drum produces more consistent chips, while the heat-treated, AR-450 steel drum skin provides longer wear life for lower replacement costs and less downtime.

Most popular related searches

forestry and biomass drum chipper

whole tree chipper

forestry biomass chipper

forestry biomass

forestry chipper

Morbark Integrated Control Systems (MICS)

This ultimate diagnostic system monitors hydraulic pressures, temperatures, clutch systems and engine efficiency to maximize performance.

Length NCL 31’6″, 9.6 m
Height NCL 11’6″, 3.5 m
Width NCL 8’4″, 2.54 m
Length NCL Track 29`5.25", 8.97 m
Height NCL Track 11`6", 3.50 m
Width NCL Track 8`6", 2.59 m
Gross weight NCL 36,500 lb, 16,556 kg
Tongue weight NCL 7,200 lb, 3,265 kg
Axle weight NCL 29,300 lb, 13,290 kg
Gross weight NCL Track 51,500 lb, 23,360 kg
Tandem axle NCL 36,000 lb leaf spring suspension, 16,330 kg
Engine CAT
Horsepower NCL 577 HP, 430.3 kW
Horsepower NCL Track 577 HP, 430.3 kW
Fuel capacity (tank) NCL 160 gallons, 605 litres
Fuel capacity (tank) NCL Track 200 gallons, 757 litres
Hydraulic oil capacity NCL 80 gallons, 303 litres
Hydraulic oil capacity NCL Track 100 gallons, 378 litres
Chipping capacity 23″ diameter, 58.42 cm
Tires Super Singles 385/65R/22.5 20-ply
Brakes air
Towing arrangement Pintle Hitch Tongue with Skidder Plates
Tracks 320L Caterpillar undercarriage
