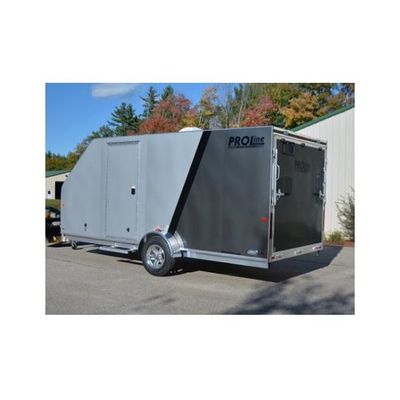

PROLine - Model 7 -Wide Hybrid ATV Trailer
The Superior Strength & Style of Our 7` Wide Hybrid ATV Trailer. Finally an enclosed trailer to haul your ATVs! The IS7 Series aluminum trailer has a 7′ wide box for easy towing and big 15″ radial tires on the outside of the trailer for added safety! Add an optional beavertail to increase the clearance height for the ramp door as well! A rear ramp door with spring assist is standard so it’s easy to get your ATVs in and out. Other standard features include Dexter Torflex axle, multiple LED interior lights, and LED stop-turn-tail, sidemarker, and fender lights. This is the perfect lightweight aluminum trailer for your ATVs and extremely rugged built on a 2″x 5″ tubular main frame. As always our wall and roof cross-members are on 16″ center and built for the New England winters!. This is an incredibly rugged enclosed aluminum trailer and one of the best towing trailers available!
- Lower Deck Heights For Easier Loading
- Dexter Torsion Axles To Reduce Bumps
- 2 Quick Adjust Floor Rails for Tie Down Versatility
- Rear Ramp Doors With Spring Assists
- 15" Radial Tires That Run Cooler & Last Longer
- 2x5" Frame, Wall Uprights, 16" Ceiling On Center
Model: ALL MODELS
- Frame: All Aluminum Tubular - 2"x5" Main Frame
- Axles: Dexter Torflex w/ EZ Lube Hubs
- Brakes: Option(IS 712, IS 716) / 10" Electric Self Adjusting on Both Axles(IS 716T, IS 722T Tandem)
- Tires/Wheels: ST205/75R15 LRC Tires on Galvanized Wheel
- Exterior Skin: .030 Painted Aluminum Sheets - Screwless
- Full Stoneguard Front
- Wall/Roof Structure: All Aluminum Tubular - 16" On Center
- Roof Skin: Seamless Mill Finish Aluminum
- Flooring: 3/4" GP DryMax High Performance Floor
- Exterior Lights: LED Stop-Turn-Tail, LED Side Marker, LED Clearance, LED Plate Light
- Interior Lights: 2(IS 712) / 3(IS 716, IS 716T) / 4(IS 722T Tandem)
- Interior: 12" Kickboard on Interior Walls
- Tiedowns: 2 Quick-Adjust Floor Rails
- Trailer Doors: Rear Ramp Door w/ Spring Assist
- 32" x 68" Side Access Door w/ RV Lock
- Jackstand: Swivel Jackstand w/ Wheel
- Ramp Door: 76" Wide
- Ramp Door Hinges: Aluminum w/ Grease Fittings
- Ventilation: CHOICE: Ventline Pop-Up Roof Vent (1) or Black Plastic Sidewall Vents (2)
- 12V Power: 4 Way Flat(IS 712, IS 716) / 7 Way Round Plug(IS 716T, IS 722T Tandem)
Every PROLine trailer is available in multiple different solid colors at no additional charge for any one color. We also offer Blackout Trim, Two-Tone combinations, Two-Tone w/ ATP Accent, & Aluminum Stoneguard Sides.
