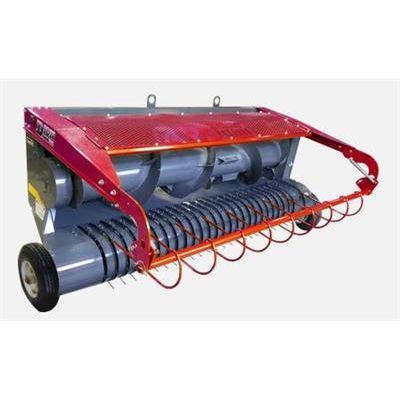

Dion-Ag - Model F46 - Windrow Pick-up Forage Harvesters
Compact version. An efficient and complete harvest achieved with a 5 finger bar reel for an unmatched pick-up quality.
Full Width Harvest

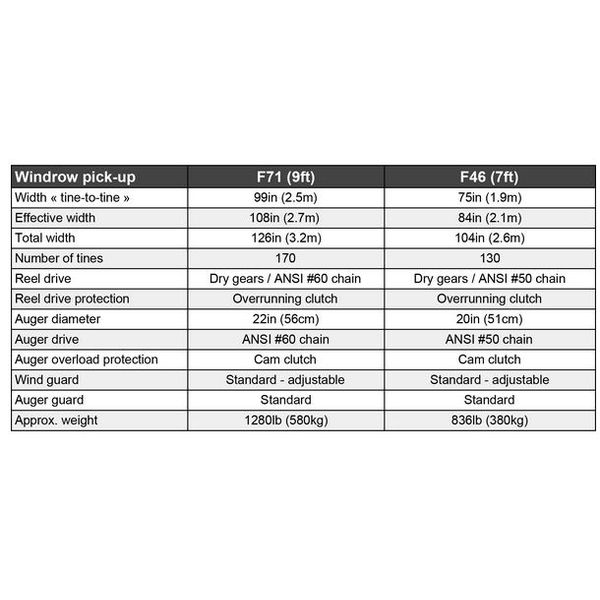

With a 2.75 m (108 in) effective width, any size windrows are efficiently harvested. Merge multi windrows for an even more efficient harvest and take full advantage of your Dion forage harvester`s capacity.
5 pick-up bars
Even through the harshest conditions or at high harvesting speed, the standard 5 finger bars provide a consistent and complete hay pick-up.
Large Diameter Conveyor Auger
The 56 cm (22 in) diameter conveyor auger channels either small or wide windrows consistently. Adjustable paddles ensure a constant feed to the harvester through any conditions.
Overload Protection
A maintenance free, radial pin clutch, instantaneously protects from overloads then re-engages automatically. No safety shear bolt replacement required.
Adjustable Wheels
Harvest as close as required with multiple wheels height adjustments.
