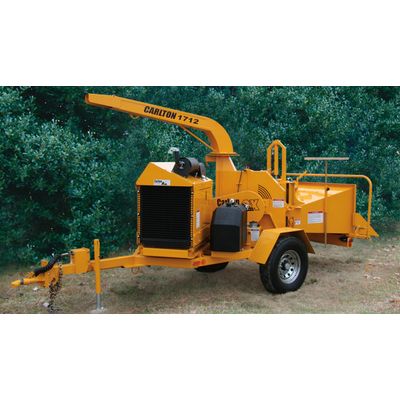

J.P. Carlton - Model 1712 Series (12 In.) - Wood Chipper
J.P. Carlton offers a variety of 12-inch chipper models to tackle almost any project. The J.P. Carlton Model 1712 Wood Chipper provides an ideal balance of capacity, economy, and portability. At just 5500 pounds the 1712 is easily towable by smaller chip trucks. The lightweight and compact size of the 1712 makes it highly maneuverable in tight places. J.P. Carlton Model 1712 incorporates many design features to make it a highly productive 12-inch capacity chipper. The 48-inch by 28-inch infeed opening allows the 1712 to swallow tops with little or no trimming. The 10½-inch diameter feed rollers accept the wood with minimal fuss or wrapping. The industry’s largest 32-cubic-inch displacement hydraulic feed motors provide the power to pull and collapse limbs and tops.
Most popular related searches
- 74 HP Kohler T4F Turbo Charged Diesel
- 74HP Kubota T4F Turbo Charged Diesel
- 80HP GM Liquid Cooled Gas
- 88 HP Kubota Liquid Cooled Gas
- Disk Style Wood Chipper
- Tail Lights are protected by the infeed tray during chipping.
- Swivel Discharge allows the operator to fill the truck corner to corner, or easily direct the chips to a precise place on the lot.
- Heavy Duty 1 ½” Feeder Bar
- 12″ x 17″ Throat Opening, easily handles the most difficult materials.
- 48″ Wide Feed Chute takes the big tops, requires less trimming by the crew!
- Live Hydraulics run directly off the engine allowing the operator to engage all hydraulic functions without the disk being engaged.
- 74 HP Arborist Package Kubota Diesel, specifically designed for use on a chipper and includes: radiator debris screen, live hydraulic pump hook up, locking side panels, easy access air cleaner mounted to the rear of the engine to keep it as far away from the dust as possible.
- Heavy-Duty Infeed Table and Folding Tray
General
- Weight: 5500 Pounds
- Length: 186 inches
- Height: 93 inches
- Tires: 235/80R16 Ld Rng H 4805 Pd @ 125PSI
- Axle: Dexter Torflex 7,000 Pound Cap
- Brakes: Electric with Breakaway Switch
- Hitch: 9″ Height Adjustable Pintle
- Fuel Capacity: 40 Gallons
- Battery: 29HVD 650 CCA
- Jack Stand: 2000 # Cap Screw Type Swing Up
Engine
- Manufacturer: Kubota Turbo Charged Diesel V3800-CR-TE4B
- Number of Cylinders: Four
- Bore: 3.93 Inches (100 mm)
- Stroke: 4.73 Inches (120 mm)
- Displacement: 230 Cubic Inches (3.7L)
- Maximum RPM: 2200 RPM
- Horsepower: 74 HP
- Torque: 240 Ft Lbs
- Cooling Medium: Liquid Water/Antifreeze Mixture
- Air Cleaner: Two Stage Dry Type
- Oil Filter: Full Flow Spin On
- Oil Capacity: 14 Quarts
- Oil Type: SAE 10W40 CD Grade or Higher
- Electrical: 12 Volt
- Gauges: Oil Pres, Water Temp, Amp, Digital Tach
- Clutch: Stein
Bearings
- Disk Bearings: 2 7/16 inches Tapered Roller
- Feed Roller Bearings: 2 inches Ball Bearing
Chipper Disk
- Wheel Diameter: 38 1/2 inches
- Wheel Thickness: 1.5 inches
- Disk Balance: Precision High Speed Balanced
- Wheel Speed: 1180 RPM
- Number of Knives: 4
- Knife Dimensions: 7 1/4 x 4 x 1/2″ and 6 3/32 x 4 x 1/2
- Anvil: 4 1/2″ x 11″ x 1/2″ AR400
- Chip Throwers: Two 3/8″ x 4″ x 4″ x 11″ long
Cutting Dimensions
- Throat Opening: 12″ x 17″
- Infeed Hopper Opening: 29″ x 48″
Hydraulic System
- Hyd Pump Displacement: .8 Cu in
- Hyd Pump Drive System: Direct Drive off Engine Mount
- Flow: 8.8 GPM Total
- System Relief: 2500 PSI
- Oil Tank Capacity: 9 Gallons
- Oil Type: AW32
- Valve: Energy
- Hose: 16,000 PSI Burst – Exceeds SAE 100R2
- Oil Filter: 10 Micron Absolute in Tank Return withSuction Screen
Drive System
- Engine Sheave: 4/5V8.5
- Jackshaft Sheave: 4/5V14.0
- Drive Belt: 4/5V950 with Aramid Fiber Cord
- Cutter Head Shaft: 4 inches
Feed System
- Feed Motors: Two 32 Cubic Inch Displacement
- Flow: 4.4 GPM to Each Motor
- Hydraulic Drive: Live – Driven off engine
- Autofeed: Digital, Fully Adjustable
- Feed Rate: 100 Feet Per Minute
- Feed Rollers: Two 10 1/2″ x 16 1/4″
- Springs: 19″ Tight Wound Powder Coated
- Slide Bearings: Four 1″ Hardened
- Lift Cylinder: 2 x 12 with 1″ attachments
- Discharge: Adjustable Swivel
Frame
- Main Trailer Tongue: 3″x 4″ with 1/4″ wall
- Main Trailer Frame: 2″x 4″ with 3/16″ wall
- Telescoping Tongue: N/A
- Engine Channel Mnts: 4″ Channel with 5/16″ web
- Infeed Chute: 10ga with 2″ x 2″ x 1/8″ tube frame
- Folding Infeed Tray: 10ga with 4″ x 1 1/2″ x 3/16″ bracing
- Folding Tray Lock: 3/4″ Spring Loaded Pin
- Discharge Chute: 10 gauge
- Discharge Lock: 3/4″ Spring Loaded Pin
- Fuel Tank: Molded Plastic
- Hydraulic Tank: 1/4″ Steel Fabricated Tank
- Battery Box: 3/16″ checker plate
- Fenders: 3/16″ checker plate
- Feeder Bar: 1 1/2″ OD x 1/8″ wall – removable
- Light Brackets: 3/16″ with hidden wiring
- Hitch Plate: 3/4″ Plate adjustable 9″ Up/Down
