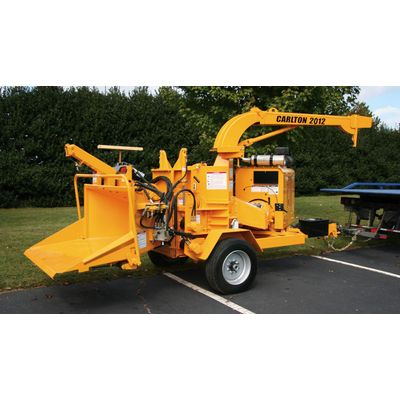

J.P. Carlton - Model 2012 Series (12 In.) - Wood Chipper

• 116 HP Kubota T4F Turbo Charged Diesel
• 133 HP GM Liquid Cooled Gas
• Disk Style Wood Chippers

• LED Taillights mounted high on the infeed out of harms way. All J.P. Carlton chippers come with heavy duty taillight covers as standard equipment . All the wiring runs inside the frame to give the machine a neater appearance and keep wires clear of damage.
• Heavy Duty Planetary Winch with cable and choker is an option on all J.P. Carlton Chippers. This planetary winch has two speeds and the strongest pulling power available on a chipper.
• Hand Crank Swivel Discharge Chute allows the operator to easily fill the truck corner to corner, or easily direct the chips to a precise place on the lot.
• Standard Hydraulic Cooler keeps the system running at ideal temperature. This increases both performance and component life.
• Hand Crank Height Adjustable Discharge Chute allows the operator to quickly adjust the discharge perfectly for any truck.
• Heavy-Duty 1 ½” Feeder Bar
• 20″x 12″ Throat Opening, largest in its class, easily handles the most difficult materials.
• 64″ Wide Infeed Chute takes the big tops, requires less trimming by the crew! A 48″ Wide Chute is available when a more compact chipper is desired.
• Live Hydraulics run directly off the engine allowing the operator to engage all hydraulic functions without the disk being engaged.
• Engine Options include Kubota 116 HP and GM 135 HP. These arborist engine packages are specifically designed for use on a chipper and include heavy-duty radiator screens, live hydraulic pump hook ups, locking side panels, and easy access to filters and fluids.
• Heavy-Duty Infeed Table and Folding Tray.
• Locking Fuel and Hydraulic Tanks sit down in the frame for maximum capacity and a clean design.

General

• Weight: 7200 Pounds
• Length: 186 inches
• Height: 100 inches
• Tires: 215/75R17.5 Ld Rng H 4805 # @125 PSI
• Axle: Dexter Torflex 8,000 Pound Cap
• Brakes: Electric with Breakaway Switch
• Hitch: Five Inch Height Adjustable Pintle
• Fuel Capacity: 40 Gallons
• Battery: 29HVD 650 CCA
• Jack Stand: 5000 # Cap Screw Type Swing Up

Engine *

• Manufacturer: Kubota
• Number of Cylinders: Four
• Bore: 3.94 Inches (100 mm)
• Stroke: 4.72 Inches (120 mm)
• Displacement: 230 Cubic Inches (3.769L)
• Maximum RPM: 2600 RPM
• Horsepower: 116HP
• Torque: 318 Ft Lbs (431 NM)
• Cooling Medium: Liquid Water/Antifreeze Mixture
• Air Cleaner: Two Stage Dry Type
• Oil Filter: Full Flow Spin On
• Oil Capacity: 14 Quarts
• Oil Type: 15W-40 Rotella  (CJ-4 Rating)
• Electrical: 12 Volt
• Gauges: Oil Pres, Water Temp, Amp, Digital Tach
• Clutch: Stein 11 1/2 ” Over Center

Bearings

• Disk Bearings: 2 7/16 inches Tapered Roller
• Feed Roller Bearings: 2 inches Tapered Roller

Chipper Disk

• Wheel Diameter: 40 inches
• Wheel Thickness: 2 inches
• Wheel Thickness: 2 inches
• Disk Balance: Precision High Speed Balanced
• Wheel Speed: 1180 RPM
• Number of Knives: 4
• Knife Dimensions: 7 1/4 ” x 4 1/2 ” x 1/2 “
• Anvil: 4 1/2 ” x 12 1/2 ” x 1/2 ” AR400
• Chip Throwers: Two 3/8″ x 4″ x 4″ x 12″ long

Cutting Dimensions

• Throat Opening: 12 3/4 ” x 20″

Hydraulic System

• Hyd Pump Displacement: .87 in cu/rev (14.4cm cu/rev)
• Hyd Pump Drive System: Direct Drive off Engine Mount
• Flow: Variable Pressure Compensated
• System Relief: 2500 PSI
• Oil Tank Capacity: 13 Gallons
• Oil Type: AW32
• Valve: Series Type
• Hose: 16,000 PSI Burst – Exceeds SAE 100R2
• Oil Filter: 10 Micron Return with Suction Strainer

Drive System

• Engine Sheave: 6/5V7.1
• Jackshaft Sheave: 6/5V15
• Drive Belt: 6/5V1000 Kevlar Construction
• Cutter Head Shaft: 4″

Feed System

• Feed Motors: 32 Cubic Inch Displacement
• Flow: Pressure Compensated Adjustable
• Hydraulic Drive: Live – Driven off engine
• Autofeed: Reversing, Digital, Fully Adjustable
• Feed Rate: Adjustable
• Feed Rollers: Two 10 1/2 ” x 18 1/2″
• Springs: Two 19″ Tight Wound Powder Coated
• Slide Bearings: Four 1″ Hardened
• Lift Cylinders: Two 2 x 12 with 1″ attachments
• Discharge: Crank Adjustable Swivel and Height

Frame

• Main Trailer Tongue: 4″ x 6″ with 3/8 ” wall
• Main Trailer Frame: 2″ x 6″ with 1/4 ” wall
• Telescoping Tongue: 3″ x 5″ with3/8″ wall by 72″ long
• Engine Channel Mnts: 4″ Channel with 5/16 ” web
• Infeed Chute: 3/16″ with 2″ x 2″ x 1/4″ tube frame
• Folding Infeed Tray: 3/16″ with 4″ x 1 1/2 ” x 3/16 ” bracing
• Folding Tray Lock: 3/4″ Spring Loaded Pin
• Discharge Chute: 10 gauge
• Discharge Lock: 3/4″ Spring Loaded Pin
• Fuel Tank: 3/16″ with baffles rubber mtd
• Hydraulic Tank: 3/16″ gauge with baffles rubber mtd
• Battery Box: 10 gauge checker plate – lockable
• Fenders: 3/16″ checker plate
• Feeder Bar: 1 1/2 ” OD x 1/8 ” wall – removable
• Radiator Guards: 2″ x 4″ with 3/16 ” wall
• Light Brackets: 3/16″ with hidden wiring
• Axle Mounts: 1/2″ Plate
• Hitch Plate: 3/4″ Plate adjustable 5″ Up/Down
