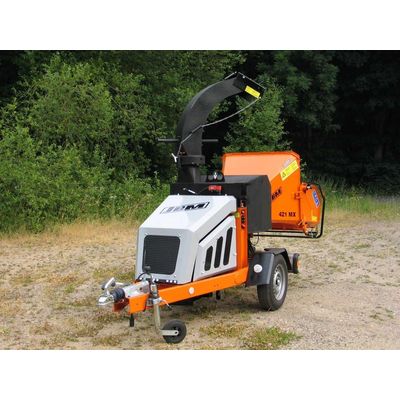

JBM - Model JBM 421 MX - Wood Chipper
Compact Wood Chipper with Professional Equipment.
Most popular related searches
wood chipper
chipper wood
wood chipping
feed safety
feed hopper
compact chipper
wood chipper machine
feed intake
stabling system
- Wood chippers made by JBM: compact and with professional chipping capacity
- Especially suited for rental stations, caretaker services, smaller municipalities and landscapers
- Ideal machine for small jobs and towing vehicles with small towing capacity
- Smallest JBM diesel machine
- Compact, easy-to-use wood chipper
- Compact machine with great chipping capacity
- Weight approx. 750 kg
- Driver’s license class B
- Wood chipper with Kubota diesel engine 30 hp (22 kW)
- Automatic cut-off in the case of overheating
- Large pulleys with power belt
- Spring-mounted single-axle chassis with high-quality chassis components
- Tow hitch with overrun brake and handbrake
- Galvanized frame
- Large hinged hopper according to Πstandard
- W x H: 990 x 900 mm
- Material flow-optimized hopper design
- Ergonomic safety circuit according to EN 13525 with circumferential safety bar
- Mechanical-hydraulic actuation of feed and safety elements or electrical-hydraulic actuation of feed and safety elements via buttons
- Large aggressive feed rollers
- Wide intake 210 x 160 mm
- Large powerful chipper disk with high gyrating mass Ø 610 x 25 mm
- Quality cutting tools with 2 continuously adjustable blades
- Powerful discharge with large range and adjustable spread cover
- Discharge height 2.20 m
- Fully swivelable discharge according to GS standard
- Hydraulic cutting length adjustment
- Continuously adjustable feed speed
- Anti-locking system
- Easy maintenance through wide opening service hoods
- Duo lubrication system
- Silent package
- Additional comprehensive equipment options
- Machine dimensions L x W x H 3.20 (3.60) x 1.50 x 1.62 m
- Weight approx. 750 kg
Drive
- Kubota diesel engine 30 hp (22 kW)
- Automatic cut-off in the case of overheating
- Large pulleys with power belt nd
Operation and ergonomics
- Ergonomic safety circuit according to EN 13525 with circumferential safety bar
- Mechanical-hydraulic actuation of feed and safety elements or electrical-hydraulic actuation of feed and safety elements via buttons
- Safety-relevant dimensions according to EN 294
Chassis and frame
- Spring-mounted single-axle chassis
- Tow hitch
- Tow ball
- Fully galvanized frame
- Lighting system according to German Traffic Regulations, impact-protected
- Wheel chocks
- Stable support wheel, front
- Rear parking support
- TÜV approval including certificate
Hopper and intake
- Large hinged feed hopper according to Πstandard
- Material flow-optimized hopper design
- Optimum loading height
- Ergonomic safety circuit according to EN 13525 with circumferential safety bar
- Large aggressive feed rollers with hydraulic forced feed
- Horizontally mounted, parallel guided feed rollers
- Encapsulated feed system
- Roller wrapping protection
- Horizontal feed rollers
- Wide intake: 210 x 160 mm
- Hydraulic cutting length adjustment with hydraulic turning system
- Continuously adjustable feed speed of the material
Chipper disks and cutting blades
- Stable blade mounting system
- Massive chipper disk with reinforced blade insert
- Generously dimensioned chipper disk Ø 610 x 25 mm
- Chipper disk dynamically balanced
- Quality blades made of quenched and tempered steel
- Continuously adjustable cutting system
- Counter blades can be used 4 times
- Side wall wear protection on the inside
- Over-dimensioned main bearing
- Additional wrapping protection for main bearing
Discharge and wood chips
- Discharge with large discharge range
- Discharge chute fully swivelable according to GS standard
- Adjustable spread cover
- Secured transport position
- Silent discharge chute
- Hinged discharge chute
- Adjustable wood chip length 0 – 25 mm
- Perfectly shredded wood chips for covering plots or heating systems
Control and hydraulic system
- Engine control with integrated service block
- Automatic engine cut-off in the case of overheating
- Hydraulic feed control with cutting length adjustment
- Anti-locking system for automatic roller control
- Filling level indicator for hydraulic oil
Maintenance and service
- Good access to the cutting system for adjustments and replacements
- Wide-opening service hood
- Gas pressure absorbers
- Duo lubrication system
- Tank system with liquid filling level indicator
Safety
- Designs according to the GS standard
- Pressurized hydraulic hoses with burst protection
- Double-walled steel housing for chipper disk tunnel
- Safety operator handle and feed hopper dimensions according to EN 294 and EN 13525
- Gas pressure spring for upper tunnel
- Silent package
- Silent discharge chute
- Transparent safety curtain
- Quality with extremely high breaking strength
