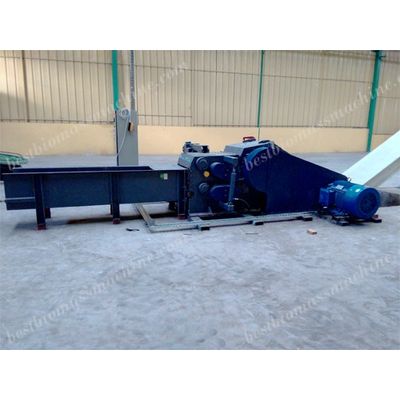

ABC Machinery - Model BX216 - Wood Chipper Machine
Wood chipper machine plays an irreplaceable role in the complete pellet production line that takes wood log, weed tree, etc as raw materials.
Undersized log, timer residues (branch, twigs,etc), wood processing residues (batten, slab, wood core, fishtail veneer, etc) and wood, etc.
- Knife-cylinder assembly
- Upper feeding roll
- Lower feeding roll
- Transport assembly
- Hydraulic system
- Electric control system
Knife-cylinder diameter(mm): 650mm
Fly cutter amount(slice): 2
Feed inlet size(height×width): 240×540mm
Knife-cylinder speed(rpm): 590
Feeding speed(m/min): 38
Max diameter of materials(mm): 200
Chip length(mm): 15-30
Production ability(actual cubic meter/h): 10-12
Main motor power(kw): 55(Fulin,Shandong province)
feeding roll motor power(kw): 3×1 4×1
weight(t): 4.07
Dimension(length×width×height)(mm): 1980×1950×1250
The wood chipper has the advantages of compact structure, easy to operate, high production rate, wide raw material ranges, safety and reliability. It is convenient to maintain the chipper. And the chips from the wood chipping machine have high quality. The wood chipper is a more advanced drum chipper in our country at present.
