Timberwolf Manufacturing Corporation
Timberwolf - Model TWC-32 -Wood Conveyor

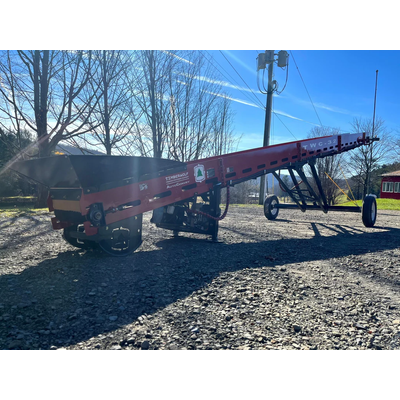

Weighing 2,040 pounds with a frame length of 32`, the TWC-32 is Timberwolf`s largest commercial wood conveyor. The TWC-32 has max operating height of 14"l" and a minimum operating height of 7`5". Grizzly Bars and/or a manual or driven oscillating axle can be optionally equipped to the commercial wood conveyor.
Most popular related searches
- Weighing 2,040 pounds with a frame length of 32’, the TWC-32 is our largest firewood conveyor model, perfect for large-scale commercial projects that need a boost in productivity.
- When in operation, the TWC-32 wood elevator is stabilized by a ground skid. The ground skid maintains contact with solid ground, which keeps the log conveyor sturdy while handling large loads. This results in a cleaner pile of firewood at the end of the conveyor belt and a longer product lifespan.
- The rubber belt fines deflector (located just beneath the hopper) also filters debris from falling into the roller.
- Adjusting the height of the TWC-32 conveyor is simple with our hydraulic lift cylinder. Because of the log conveyor’s size, it uses telescopic axles, which are two arms on either side of the hydraulic lift cylinder. The telescopic axles provide a sturdy base for the TWC-32, which dramatically reduces the risk of the conveyor tipping. Also, the telescopic axles can adjust height along with the hydraulic lift cylinder; simply remove the pull pins securing the telescopic axle arms to adjust the height and re-insert them once the conveyor is at your desired height.
- Because of the wood conveyor’s tapered rollers design, the belt will pull itself back towards the center if misaligned, even if the conveyor is on uneven ground.
- Logs can be fed onto the firewood elevator via the modular hopper. Constructed out of 3/16” High Steel plate steel on the bottom and 1/8” plate steel on the sides, the hopper will handle cords of firewood for years of reliable service. Not only is the modular hopper heavy-duty, but it is bolt-on, making removal and upgrades easy.
- Optionally, 36” long Grizzly Bars can be added to the TWC-32 wood conveyor. This optional add-on bolts onto the end of the conveyor and cleans out fine material from your firewood before it is offloaded.
- The wood elevator can optionally be constructed with an oscillating axle that allows the TWC-32 to move side-to-side, either via a manual adjustment or driven roller.
- Tapered rollers that self-adjust for correct belt tracking
- Ground skid that provides additional stability by anchoring to solid ground
- Rubber belt fines deflector that prevents debris from falling into the roller
- Hydraulic lift cylinder controlled by a tandem center spool valve
- Engine Power (HP): 4.9
- Travel Height (ft): 8`
- Min Height (ft): 7`8"
- Max Height (ft): 13`2"
- Max Angle: 29
- Frame Width (ft): 1`10"
- Weight (lbs): 1,730
