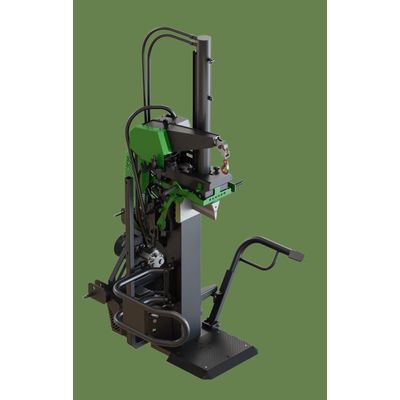

Robust - Model Ranger V 160 -Wood Splitter
FromRobust d.o.o.
Regardless of whether you are a hobbyist or a real expert in the forest, the Robust Ranger V 160 wood splitter will adapt to your needs. Its variety of settings and functions makes your work simple, efficient and attractive. The Ranger V 160 doesn’t follow trends, it creates them. Its rebellious style is pushing the boundaries of known forestry concepts and represents a symbol of strength and perseverance. Working with the Ranger V 160 splitter will not only be a job, but a first-class forest adventure.
Most popular related searches
- Cylinder brake function RangerLock™
- The handle’s comfort control function RangerComfort™
- Controlling the splitting blade – RangerVelocity™ function
- Lifting bow for lifting heavier workpieces
- Splitting up to 600mm in diameter
- Premium cast iron pump – GUS
- Cylinder brake function RangerLock™
- The handle’s comfort control function RangerComfort™
- Controlling the splitting blade – RangerVelocity™function
- Superior hydraulic system with larger oil cooling surface
- Thickened protective left and lifting bow for lifting heavier workpieces
- HARDOX cutting blades at an angle of 4.5°
- Sandblasted and powder coated robust construction
- More robust base of the splitter and increased frame strength
- Suction filter on the lower, return filter on the upper part of the tank
- Premium cast iron pump with superior oil flow
- Oil leveler integrated on the machine structure
- Integrated holders for a splitting blade, S cant, L cant
- Plastic guides that do not require lubrication
- Max. Height of workpiece 1150mm
- Splitting up to 600mm in diameter
- Option of upgrading the hydraulic winch
- Option to upgrade the hydraulic oil cooler
- Drive: U-joint
- Description: Cast iron pump
- Splitting force (t): 16
- Length of workpieces (mm): 250–1150
- Diameter of workpieces (mm): 600
- Weight (kg): 420–500
- Oil quantity (l): 35
- U-joint – max rpm: 540
- Transport height with table (mm): 2050
- Dimensions L/W/H (mm): 1785/856/1280/2615
- H1/H2/PH splitting speed (cm/cm/s): 21.9/17.5
- Workpiece height on the table (mm): 630
- Required tractor power (kW/KM): 25/34
- Required U-joint torque (Nm): 200
- Controlling the splitting blade (switch): Automatic (RangerVelocity™)
- Oil flow (l/540min?¹): 58
- Three-point tractor hitch (categories): I, II
- Cylinder stroke (mm): 1100
- User type: Beginner–professional
