X-ray Biological Irradiator for small animal and cell and seed study

Ø Safe to use - no additional X-ray shielding requirements, leakage dose: When the equipment is turned on to its maximum energy, the dose at a distance of 5cm from the surface is less than 0.1mR/hr

Ø Easy to operate - no professional X-ray knowledge required for operation

Ø The plug can be connected to any standard AC circuit power socket

Ø Spacious irradiation chamber that can meet the irradiation needs of large batches of samples

Ø Adjustable irradiation distance to meet different irradiation needs

Ø Equipped with an irradiation dose detection ionization chamber, it can detect doses at any position and accurately detect radiation.

Ø Equipped with an electric optional sample tray to improve irradiation dose uniformity.

Ø The radiation is located above the irradiation room and does not occupy any irradiation space, resulting in a large irradiation space.

Ø The touch screen is easy to operate.

Ø Support OEM services and provide irradiation instruments that are more suitable for users.

l Small animal irradiation

l Stem cells: bone marrow ablation and transplantation, etc

l Immunology: such as cell culture and division inhibition research, T/B cell research, and blood cells

l Transplantation immunity, immunosuppressive therapy, etc

l Cell level: cell apoptosis or aging, signal transduction, activation sites or factors

l Genomics: gene stability research, DNA damage

l Cancer biology: cancer stem cells, tumor irradiation, research on lethal doses of radiation therapy, etc

l Microbiology: Microbial immunity, research on microbial DNA damage

l Microbial radiation resistance research, microbial weakening and inactivation, etc

l Preparation of feeder layer cells

l Insect sterilization technology (SIT)

l mutation breeding

l Food irradiation

l Drug research: treatment of radiation resistant drugs, radiation sensitizers, etc

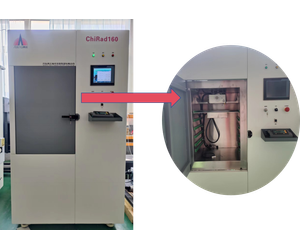

Technical Specification of ChiRad 160                 :

Energy range 20-160kV

Tube current 18mA

System power 3000W

Focus size 5.5mm

Filter 0.8mmBe

Radiation angle 40°

Ray coverage range 40cm diameter

Distance from ray source to object 13cm - 65cm

Exposure time 9999 S/M/H

Power requirement   20VAC,50 Hz, sigle phase, 9KVA

Cooling integrated closed-loop heat exchanger

Sample turntable electric,  2 RPM

Internal dimensions 58cm X 41cm X 43cm

External dimensions 188cm X 108cm X 88cm

Weight 960kg

Technical Specification of ChiRad 225

Energy range 20-225kV

Tube current 18mA

System power 4000W

Focus size 5.5mm

Filter 0.8mmBe

Radiation angle 40°

Ray coverage range 40cm diameter

Distance from ray source to object 13cm - 65cm

Exposure time 9999 S/M/H

Power requirement   20VAC,50 Hz, sigle phase, 9KVA

Cooling integrated closed-loop heat exchanger

Sample turntable electric,  2 RPM

Internal dimensions 58cm X 41cm X 43cm

External dimensions 188cm X 108cm X 88cm

Weight 1500kg

Technical Specification of ChiRad 320

Energy range 20-320kV

Tube current 12.5mA

System power 4000W

Focus size 5.5mm

Filter 0.8mmBe

Radiation angle 40°

Ray coverage range 40cm diameter

Distance from ray source to object 13cm - 65cm

Exposure time 9999 S/M/H

Power requirement   20VAC,50 Hz, sigle phase, 9KVA

Cooling integrated closed-loop heat exchanger

Sample turntable electric,  2 RPM

Internal dimensions 58cm X 41cm X 43cm

External dimensions 188cm X 108cm X 88cm

Weight 1900kg
