Guangxi Xuvol Construction Machinery Equipment Co., Ltd.

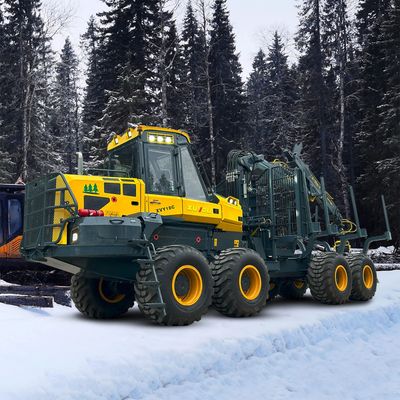

XuvolModel XVY18C -Forestry Forwarder

SHARE

XUVOL-XVY-18C Represents the larger end of Ourproduct range in terms of power, load capacity and productivity. If you need the capacity to load a lot of wood in one run, the XVY-18C is the right machine for you. Long transport distances, challenging terrain, and steep slopes are Noproblem for the XVY-18C. This workhorse gets the job done easily in Conditions which would be too challenging for many other machines. The design of the frame focuses particularly on durability and ease of maintenance. The reliable frame oscillation lock equipped with hydraulic cylinders is solid and acts as a shock absorber when Driving. ln addition to reliability, the Functional positioning and serviceability of components are typical characteristics of the structure.

Most popular related searches
  • XUVOL-XVY-18C Represents the larger end of Our product range in terms of power, load capacity and productivity.
  • XUVOL 17 Years Manufacturer Support OEM/ODM
  • Looking For Dealer
  • Welcome to consult us
  • Length/Width/Height (mm): 10820×3220×3990
  • Net Weight (t): 22
  • Load capacity (t): 18
  • Driving speed (km/h): 0~20
  • Ground clearance (mm): 700
  • Steering angle (º): 44
  • Boom rotation torque (knm): 33
  • Boom rotation angle (º): 360
  • Lift torque (knm): 160
  • Boom working radius (mm): 10000
  • Engine: Yuchai
  • Engine Power ( kw: 221KW/2200rpm
  • Max Torque of Engine: 1200nm/1400rpm~1700rpm
  • Fueltank capacity (L): 260
  • Hydraulic System: DANFOSS
  • Working Pump Displacement: 190
  • Hydraulic tank capacity (L): 170
  • Tire quantity (PC): 8
  • Tire specifications: 750/55~26.5º
  • Drive Axle: NAF TAP76
  • Gearbox Prototype: NAF VG75
