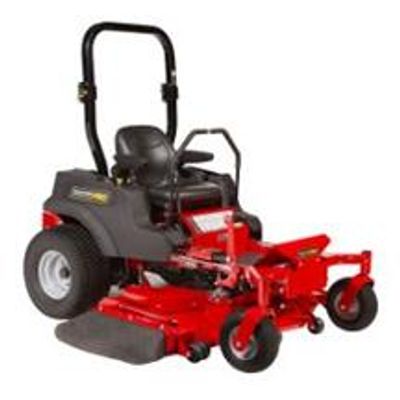

Snapper Pro - Model S125xt - Zero Turn Mowers

iCD Cutting System

The innovative iCD Cutting System allows for better airflow, discharge and superior cut quality.

Designed for Commercial Use
The Briggs & Stratton Commercial Series engine features a patented advanced debris management system which deflects dirt and debris from the engine, and any remaining debris is trapped in the high-capacity, dual-sealing air cleaner cartridge

Accessibility
Quick removal of the floor pan provides easy access to the top of the deck when maintenance is needed.

Integrated Transmissions
Dual, commercial Hydro-Gear ZT-4400 transaxels deliver unmatched power and durabilty.

Heavy-duty Spindles
Features greaseable, cast-aluminum spindles with 2.4" diameter ball bearings for longer useable life.

Foot-operated Deck Lift
The easy-to-use deck lift takes the effort out of adjusting cut height. Cutting height ranges from 1.5" - 5" in 0.25" increments.

• Engine Brand: Kawasaki FS691V
• HP (gross) *: 23
• Displacement (cc): 726
• Number of Cylinders: 2
• Starting Type: Electric
• Fuel Tank Capacity (gal): 5.5
• Transmission: Commercial Hydro-Gear ZT-3400 transaxles with 7" mounted cooling fans
• Ground Speed-Fwd (mph): 0-10
• Ground Speed-Rev (mph): 0-5
• Cutting Width (in): 52
• Height-of-Cut (in): 1.5-5
• Belts: Single 5V-section Kevlar™ corded belts
• Deck Construction: iCD™ Cutting System
• PTO: Electric
• Spindles: Cast-aluminum, greaseable
• Frame Rail: 1.5 x 2, 11-gauge
• Bearings: Greaseable tapered caster yoke bearings
• Finish: Powdura super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
• Drive Axles: 1.125 Tapered
• Drive Tires (in): 22 x 11-10
• Caster Tires (in): 13 x 5-6 Pneumatic
• Overall Length (in): 81
• Overall Width (in.) deflector down / deflector up (model): 67.5/54.5
• Dry Weight (lbs): 1059
• Seat Package: Mid-back seat with armrests
• Roll Over Protection System with retractable seatbelt: Standard, 180-degree foldable
• Instrumentation: Hour meter, Fuel level gauge
• Controls/Safety Group: Seat actuated engine kill, blade, clutch safety switch, neutral and parking brake safety circuit / adjustable twin steering controls
• Parking Brake/Safety Circuit: Internal Transaxle
• Warranty (Engine) **: 3-Year limited manufacturer`s warranty
• Warranty (Balance of Machine) **: 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator`s manual for complete details.

TURBO-PRO DOUBLE BAG SOFT TOP COLLECTION SYSTEM

The double bag collection system is simple to install. Each heavy-duty mesh bag has a rugged polyethylene underside with integrated handle to assist with removal. Capacity: 8.5 cubic feet. (Available for 48`` models)

TURBO-PRO DOUBLE BAG HARD TOP COLLECTION SYSTEM

Innovative molded hard top design allows for increased capacity. Simple to install. Each heavy-duty mesh bag has an integrated handle to assist with removal. Capacity: 10 cubic feet. (Available for 48`` models)
