SeedView - Seed Monitoring Software

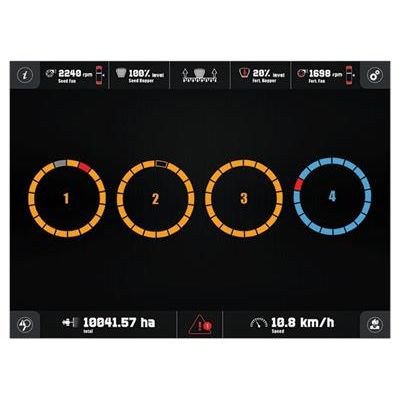

iXeed App

Minimum Requirements

• Recomended iPad types
• Operational System: iOS 8.4 or higher
• iPad Mini: 3 or higher
• iPad Air: iPad Air or higher

BlackEye Sensor

Technical Specifications

• Detection Parameters
• Standard Sensing Objects: seeds, granular fertilizers, microgranulates
• Optical Detection Elements: 6-pair (Phototransitors, IR LEDs)
• Minimum Detectable Object size*: 0.4 mm
• Maximum Speed of Detectable Objects: 30m/s
• Light Source: Infrared LED λ = 850 nm
• Detection proccess: DSP (Digital Signal Processing)
• Automatic Calibrations
• iDC – Intelligent Dust Compensation**
• iSC – Intelligent Sensitivity Calibration***
• Power & Protections
• Supply Voltage: 6 to 16 VDC ±10%
• Current: min. 10mA / Typ. 30mA / max. 80mA @ 12 VDC supply
• Integrated Reverse Polarity Protections: power supply, communication lines
• Short-Circuit Protection: integrated resettable fuses
• Overvoltage Protection: surge suppressor
• ESD (Electrostartic Discharging) Protection: ISO10605 – L2
• Physical Specifications
• Overall Dimensions: 140 x 53.1 x 71 (H x W x D)
• Weight: approx. 250g
• Enviromental¹
• Ambient Temperature Range: Operating: -10 to 105 °C / Storage: -40 to 105 °C
• Degree of Protection: IP67
• Warranty
• 2-years limited warranty
