Flowing Waters - Irrigation & Drainage ...

Flowing Waters - Irrigation & Drainage Systems solutions for Irrigation Channel Flow Measurement - Water and Wastewater - Irrigation

SHARE

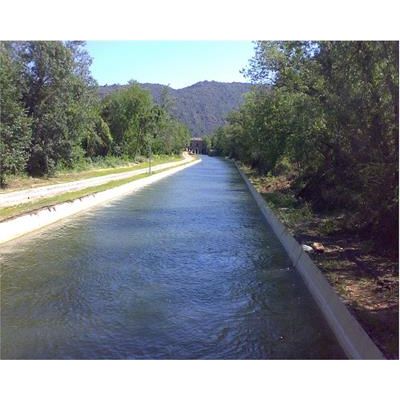

Application: Trapezoid concrete channel 9.5 x 2.5 m (w x h). Partially filled. Very high volumes and velocities from time to time.

Most popular related searches

irrigation drainage

irrigation channel

irrigation flow monitoring

irrigation flow

irrigation water

irrigation system

irrigation water system

irrigation water monitoring

irrigation water flow

Detection and control of the volumes removed for irrigation purposes
Transmission of measurement data to center via existing network (Ethernet)
Highly dynamic measurement required (flow velocities from 0 – 200 cm/s)

The flow measurement system Type NivuFlow 650 has been used.
The economically most cost-efficient solution was to use two measurement paths. Excellent accuracy has been achieved by calibrating the system under varying operating conditions.

Reliable and stable measurement covering the entire flow range up to velocities higher than 2m/s
Cost-efficient measurement even in large channel dimensions
