A.A. Henton & Son Ltd. products

A.A. Henton & Son (Steel Fabrications) Ltd, can manufacturer and supply a customer specific trailers.

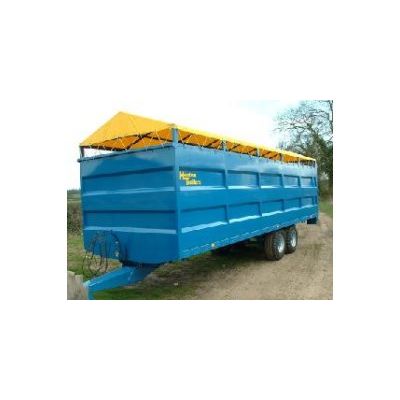

A.A. Henton & Son (Steel Fabrications) Ltd are UK Manufacturers and Suppliers of cattle transport trailers.

All models are complete wth 70mm 6 stud axles, 12.5/80x15.3 ply tyres, road lights including front marker lights with side reflectors, hydraulic brakes and two large capacity lifting rams. The trailer is locked in its raised position by two ram length pivoted channels. This ensures that no weight rests on the rams when travelling. The floor is a 5mm chequer plate extended over the rear wheels for carrying ropes, chains, etc, and has a 4inch rail to prevent loss. Rope hooks are fitted every 2ft, with chain bars at either end and centre. Hydraulic pipes run inside the drawbar to prevent damage.

5mm Chequer Plate Floor. RHS Chassis, Fully Sealed for Long Life. Hydraulic Cam Brakes. Road Lights. Rope Hooks. Road Springs (tandem models only). Sprung Drawbar (optional). A variety of Headboards (optional). The pictures overleaf illustrate that a variety of easily detachable head and tailboards can be fitted, giving total versatility. All deck heights are kept to a minimum to facilitate loading and unloading.

The trailers have a wide parallel chassis constructed from rolled hollow section fully sealed for long life, and wide spaced rams giving greater stability. The bodies have a robust box section top rail for extra durability. Side and rear panels are ribbed and braced for strength and rigidity. Panel thicknesses are: 5mm Floor, 4mm Front, 3mm Sides. Silage extensions are available across the whole range, with both side and front loading types being available. Various taildoor systems are available including Cable Latching, Auto Opening, Hydraulic etc.
