The Aquatics PHE Package is a skid mounted turnkey temperature control system designed for facilities with hot-water or cold-water loops that need to add a new temperature control point. This unit comes in two sizes dependent on flow rate, and the plate heat exchangers are sized for each application to ensure proper heat transfer area. Using a modulating 3-way valve on the process flow, the Aquatics PHE Package provides accurate and reliable temperature control. Safety controls feature an aquatic side flow switch, and aquatic side hi-limit shutdown valve to protect piping and animals in system. This turnkey package saves time and money during installation, a priority on all projects.

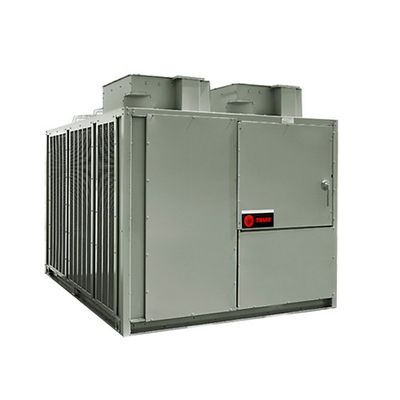

Delta Hydronics provides preplumbed and skid packaged chiller and heat transfer systems for commercial and public institutional aquatic cooling applications. Typical skid chilling applications include single tank systems, single pass flow through designs and multi-tank recirculating applications. All skid systems include single or dual chillers, immersion or plate style heat exchangers as well as all necessary components required to provide a complete chilling solution.

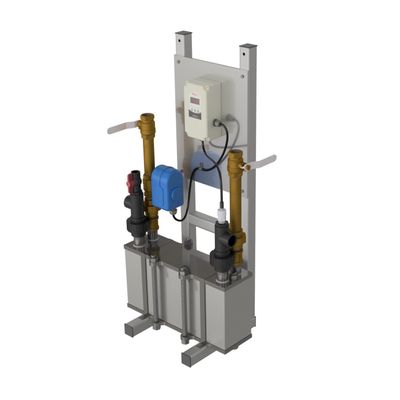

Delta Hydronics engineered MiniPac heat transfer solutions are exclusively configured for the Aquatic System Designer and LLS Engineer’s temperature control requirements and space challenges. MiniPac is an engineered heat transfer system that can be customized for your heating or chilling application. The MiniPac heat transfer package utilizes a compact, gasketed Plate Heat Exchanger with a corrosion resistant T6061 Aluminum frame specifically designed for the aquatics industries.

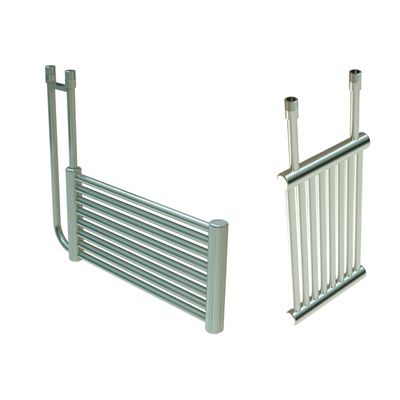

Available for in tank heating and cooling applications to be used in conjunction with a boiler or chiller system for aqueous solutions. Can be used with steam/water pressures up to 100PSI.

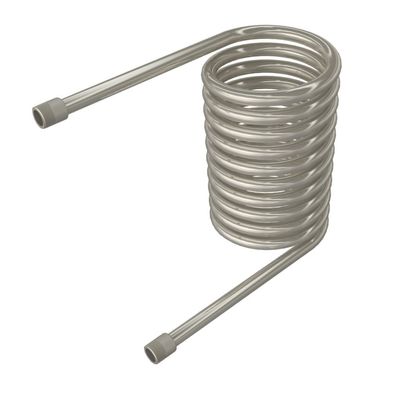

For smaller applications requiring less heat transfer area, or applications with less space, Delta’s Helical Immersion coils are a great fit. Available in Titanium, these will withstand the toughest aquatic environments.

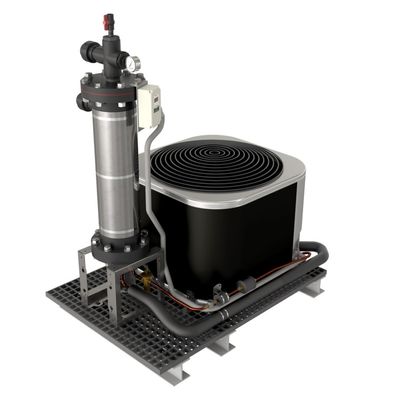

Gr.2 titanium tube heat exchanger coil, Normal operating ambient air temperature: 50 f - 115 f, All condensing units have a 14 seer rating., Top discharge area should be unrestricted for 48 inches minimum, Avoid placing unit in direct area of roof runoff or constant water flow, Consult carrier specified condenser clearances when placing unit(s), SCH 80 PVC shell construction with removable flanged ends, All 316 SS base, jacket and hardware, Temperature controller can be set +/- 0.1° f/c. Recommended minimum setpoint is 50°f, Unit arrives charged with r-410a refrigerant, Factory mounted & wired flow switch.

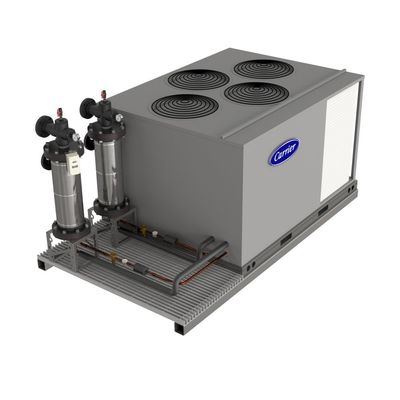

Condenser and skid mounted on 4” marine grade aluminum square tube, Gr.2 titanium tube heat exchanger coils, Normal operating ambient air temperature: 50 f - 115 f, All condensing units have EER of 11 or better., Top discharge area should be unrestricted for 48 inches minimum, Avoid placing unit in direct area of roof runoff or constant water flow, Consult carrier specified condenser clearances when placing unit(s), SCH 80 PVC shell construction with removable flanged ends, All 316 SS base, jacket and hardware, Temperature controller can be set +/- 0.1° f/c. Recommended minimum setpoint is 50°f, Unit arrives charged with r-410a refrigerant, Hail guard.

Condenser and skid mounted on 4” marine grade aluminum square tube, Gr.2 titanium tube heat exchanger coils, Normal operating ambient air temperature: 50 f - 115 f, All condensing units have EER of 11 or better., Top discharge area should be unrestricted for 48 inches minimum, Avoid placing unit in direct area of roof runoff or constant water flow, Consult carrier specified condenser clearances when placing unit(s), SCH 80 PVC shell construction with removable flanged ends, All 316 SS base, jacket and hardware, Temperature controller can be set +/- 0.1° f/c. Recommended minimum setpoint is 50°f, Unit arrives charged with r-410a refrigerant, Hail guard.

Gr.2 titanium tube heat exchanger coil, Normal operating ambient air temperature: 50 f - 115 f, All condensing units have a 14 seer rating., Top discharge area should be unrestricted for 48 inches minimum, Avoid placing unit in direct area of roof runoff or constant water flow, Consult carrier specified condenser clearances when placing unit(s), SCH 80 PVC shell construction with removable flanged ends, All 316 SS base, jacket and hardware, Temperature controller can be set +/- 0.1° f/c. Recommended minimum setpoint is 50°f, Unit arrives charged with r-410a refrigerant.

Condenser and skid mounted on 4” marine grade aluminum square tube, Gr.2 titanium tube heat exchanger coils, Normal operating ambient air temperature: 50 f - 115 f, All condensing units have EER of 11 or better., Top discharge area should be unrestricted for 48 inches minimum, Avoid placing unit in direct area of roof runoff or constant water flow, Consult carrier specified condenser clearances when placing unit(s), SCH 80 PVC shell construction with removable flanged ends, All 316 SS base, jacket and hardware, Temperature controller can be set +/- 0.1° f/c. Recommended minimum setpoint is 50°f, Unit arrives charged with r-410a refrigerant, Hail guard.
