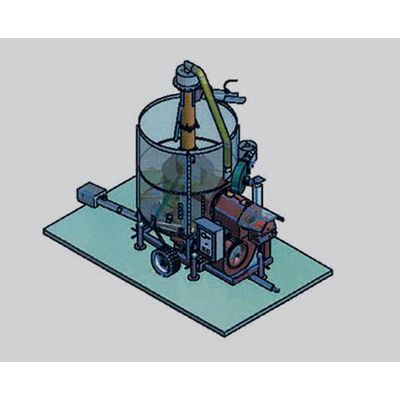

The Esma cereal dryer is ideal for all types of cereals and oilseeds. Esma mobile grain dryers come in various models in BABY - SMALL - MEDIUM and LARGE sizes depending on loading capacity; in the standard version they feature single or dual axle, loading auger Ø 150 - 200 - 250 - 300, central auger Ø 273 - 368 - 450, adjustable stabilized supports, two-stage diesel burner, cardan joints with protections, current generator, dual internal mixer for more uniform drying, spirit levels on frame, stainless steel outer panelling, inspection door, manual greasing system with easily accessible greasing points even with the machine operating, forced air static cleaner on central auger complete with interchangeable grilles, control panel on dryer comprising all start/stop commands, control elements e.g. safety system pilot lights and air and product thermostats, mobile aluminium inspection ladder, single discharge, fuel tank, 2.5 mm perforated sheet metal structure.

Capacity MAX m³ 5,93 . Capacity MAX t 4,44 . Capacity MIN m³ 4,34 . Capacity MIN t 3,25 . RIELLO burner Model RL34 . Fan - motor kw 4 . Dust aspirator - motor kw 0,75 . Mixer - motor kw 1,5 . Central auger - motor kw 7,5 . Loading auger - motor kw 3 . Tank lt 160.

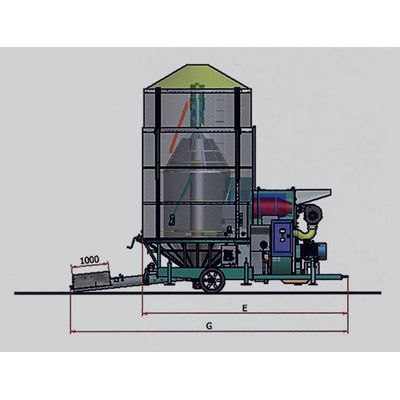

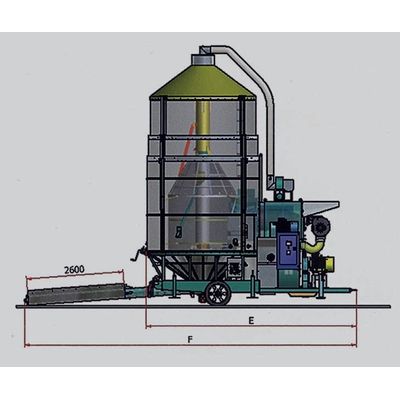

Capacity m3 12. Capacity t 9. Height during transport m 4.05. Height of cylinder A m 4.05. Operating height B m 4.52. Operating height with dust aspirator C m 575. Height of outlet chute D m 3.80. WIDTH m 2,50. Length E m 4.93. Length with 2.60m. Loading hopper F m 8.14. Lenghtwith Loading auger G m 7.30. Fan m3/h. 30.000. Burner Kcal/h 500.000. Output t/24h. 45. PTO input hp 45. Electric engine kw 22.

Capacity m3 40. Capacity t 30. Height during transport m 4.55  . Height of cylinder A m 5.90. Operating height B m 6.80. Operating height with dust aspirator C m 7.59. Height of outlet chute D m 4.05. WIDTH m 3,6o. Length E m 6.60. Length with 2.60m. loading hopper F m 10.50. Lenght with loading auger G m 9.10. Fan m3/h. 80.000. Burner Kcal/h 1.300.000. Output t/24h. 150. PTO input hp 110. Electric engine kw 60

Capacity: m³ 29. Capacity: 19. Height during transport: 4,49. Height of cylinder: A 5,55. Operating height: B 6,21. Operating height with dust aspirator: C 6,93. Height of outlet chute: D 4,05. WIDTH: 3,00. Length: E 5,62. Length with 2,60m. loading hopper: F 8,78. Lenght with loading auger: G 7,57. Fan: 50. Burner: 1.000.000. Output: 95. PTO input: 70. Electric engine: 37.

Capacity MAX: m³ 5,93. Capacity MAX: t 6,18. Capacity MIN: m³ 5,47. Capacity MIN: t 4,1. RIELLO burner: Model RL44. Fan - motor: kw 5,5. Dust aspirator - motor: kw 0,75. Mixer - motor: kw 1,5. Central auger - motor: kw 11. Loading auger - motor: kw 3. Tank: lt 160.

The ESMA continuous cycle single–burner dryer with heat recovery is equipped with a switchboard with PLC and touch screen operator panel, that is a system for activation and control, also with remote management of the whole drying process. The operator panel in particular is a device specifically designed to control the drying process of cereals in the temperature version, and it can also sense and measure humidity as an optional feature. This easily customizable system is particularly suitable for continuous cycle or air recirculating dryers with independent discharge regulation.

THE DRYING COLUMN consists of an upper loading hopper, a number of modules with rounded ducts inside immersed in the cereal, a discharge hopper and a vertical auger (optional bucket elevator) which deal with loading, recirculation and discharge, and a hot air production unit. The cereal drops down by gravity in a zigzag movement and is hit by a flow of hot dry air in counter-current which crosses the ducts and the cereal; the saturated air flow is dispersed in the atmosphere. The quantity of cereal at the outlet is predetermined and regulated by an electrically motorized extractor.

Capacity m3 20.5. Capacity t 15. Height during transport m 449. Height of cylinder A m 4.49. Operating height B m 5.15. Operating height with dust aspirator C m 6.06. Height of outlet chute D m 2.80. WIDTH m 3,00. Length E m 5.62. Length with 2.60m. Loading hopper F m 8.78. Lenght with Loading auger G m 757. Fan m3/h. 45000. Burner Kcal/h 900.000. Output t/24h. 75. PTO input hp 65.

Capacity: m³ 16,5. Capacity: t 12. Height during transport: m 4,98. Height of cylinder: A m 4,98. Operating height: B m 5,55. Operating height with dust aspirator: C m 6,05. Height of outlet chute: D m 3,70. WIDTH: m 2,50 . Length: E m 4,93 . Length with 2,60m. loading hopper: F m 8,14 . Lenght with loading auger: G m 7,30. Fan: m³/h. 35. Burner: Kcal/h 650. Output: t/24h. 60. PTO input: hp 55. Electric engine: kw 30.
